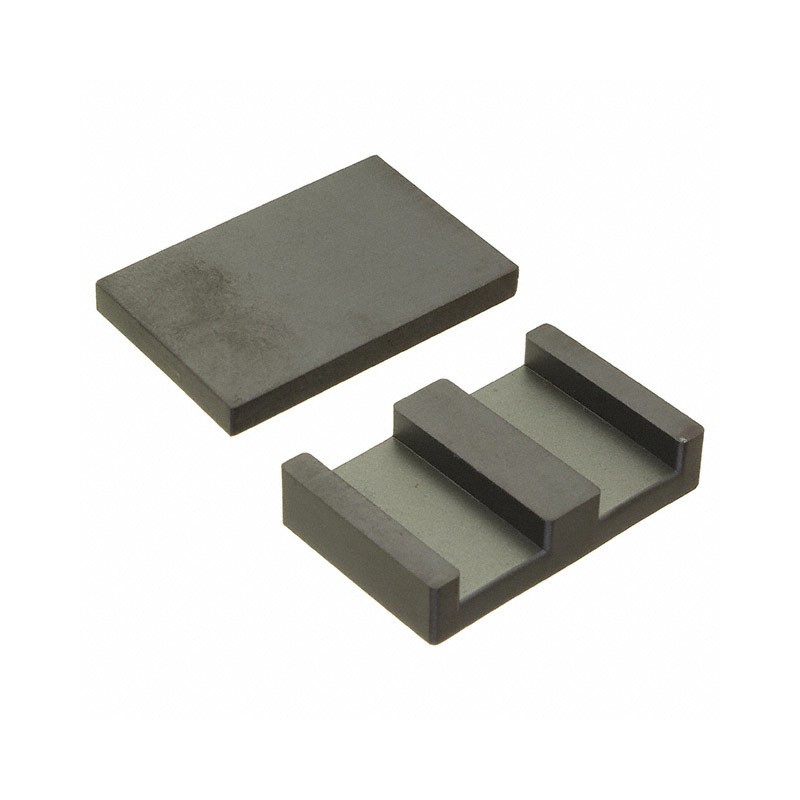

    1 pcs : 7895400421 - FERRITE CORE PLANAR E/I SET
    • 1 pcs : 7895400421 - FERRITE CORE PLANAR E/I SET

    1 pcs : 7895400421 - FERRITE CORE PLANAR E/I SET

    1AllpartsUK19341192ND
    £10.66
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated 95 Ferrite Core Planar E/I Type 1.250' (31.75mm) Length 0.800' (20.32mm) Width Diameter 0.250' (6.35mm) Height
    Product Details
    Fair-Rite Products Corp.
    1AllpartsUK19341192ND
    7895400421
    3 Items

    Data sheet

    Manufacturer
    Fair-Rite Products Corp.
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    95
    Width
    0.800' (20.32mm)
    Height
    0.250' (6.35mm)
    Length
    1.250' (31.75mm)
    Series
    -
    Finish
    Uncoated
    Core Type
    Planar E/I
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    8.7 µH
    Effective Length (le) mm
    35.2
    Effective Area (Ae) mm²
    130
    Core Factor (ΣI/A) mm⁻¹
    27
    Effective Magnetic Volume (Ve) mm³
    4570
    Minimum Core Cross Section (Amin) mm²
    129
    Initial Permeability (µi)
    3000
