Description

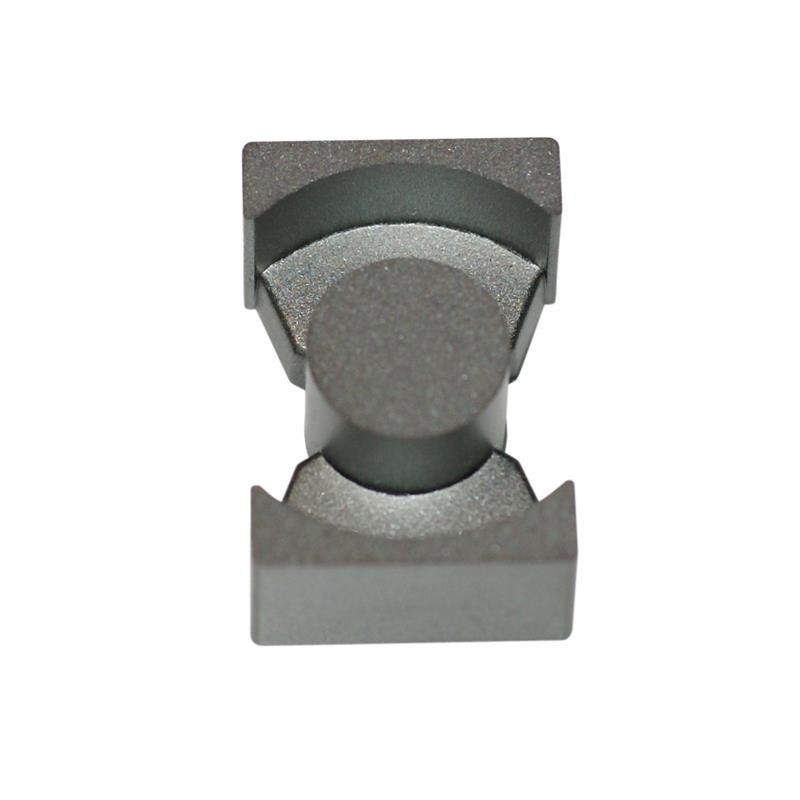

Uncoated 95 Ferrite Core PQ Type 0.807' (20.50mm) Length 0.551' (14.00mm) Width Diameter Height
Product Details
1AllpartsUK19346695212021ND
6695212021
3 Items
Data sheet
- Manufacturer
- Fair-Rite Products Corp.
- Tolerance
- ±25%
- Part status
- Active
- Diameter
- -
- Material
- 95
- Width
- 0.551' (14.00mm)
- Length
- 0.807' (20.50mm)
- Series
- -
- Finish
- Uncoated
- Core Type
- PQ
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Effective Length (le) mm
- 45.2
- Effective Area (Ae) mm²
- 62.5
- Core Factor (ΣI/A) mm⁻¹
- 72
- Effective Magnetic Volume (Ve) mm³
- 2526
- Minimum Core Cross Section (Amin) mm²
- 60.8
- Initial Permeability (µi)
- 3000
