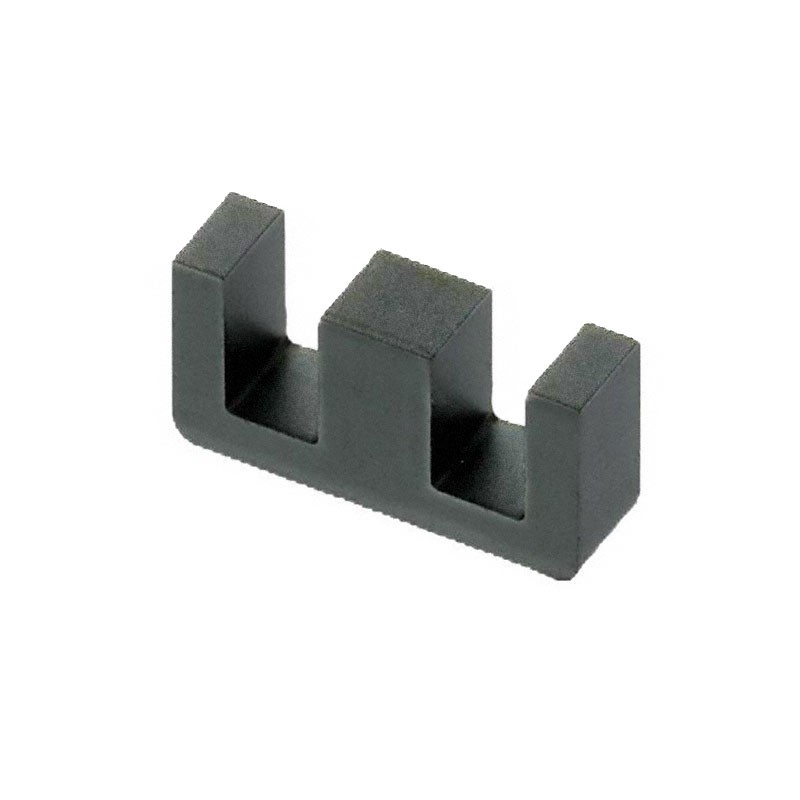

    1 pcs : B66305G0130X187 - FERRITE CORE E 112NH N87
    • 1 pcs : B66305G0130X187 - FERRITE CORE E 112NH N87

    1 pcs : B66305G0130X187 - FERRITE CORE E 112NH N87

    1electronicpartsUK49576702ND
    £9.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated N87 Ferrite Core E Type 0.496' (12.60mm) Length 0.146' (3.70mm) Width Diameter 0.256' (6.50mm) Height
    Product Details
    EPCOS - TDK Electronics
    1electronicpartsUK49576702ND
    B66305G0130X187
    3 Items

    Data sheet

    Manufacturer
    EPCOS - TDK Electronics
    Tolerance
    -
    Part status
    Active
    Diameter
    -
    Material
    N87
    Width
    0.146' (3.70mm)
    Height
    0.256' (6.50mm)
    Length
    0.496' (12.60mm)
    Series
    E13/7/4
    Finish
    Uncoated
    Core Type
    E
    Packaging
    Box
    Supplier Device Package
    E 13 x 7 x 4
    Gap
    Gapped
    Effective Permeability (µe)
    215
    Inductance Factor (Al)
    112 nH
    Effective Length (le) mm
    29.6
    Effective Area (Ae) mm²
    12.4
    Core Factor (ΣI/A) mm⁻¹
    2.39
    Effective Magnetic Volume (Ve) mm³
    367
    Minimum Core Cross Section (Amin) mm²
    12.2
    Initial Permeability (µi)
    2200
