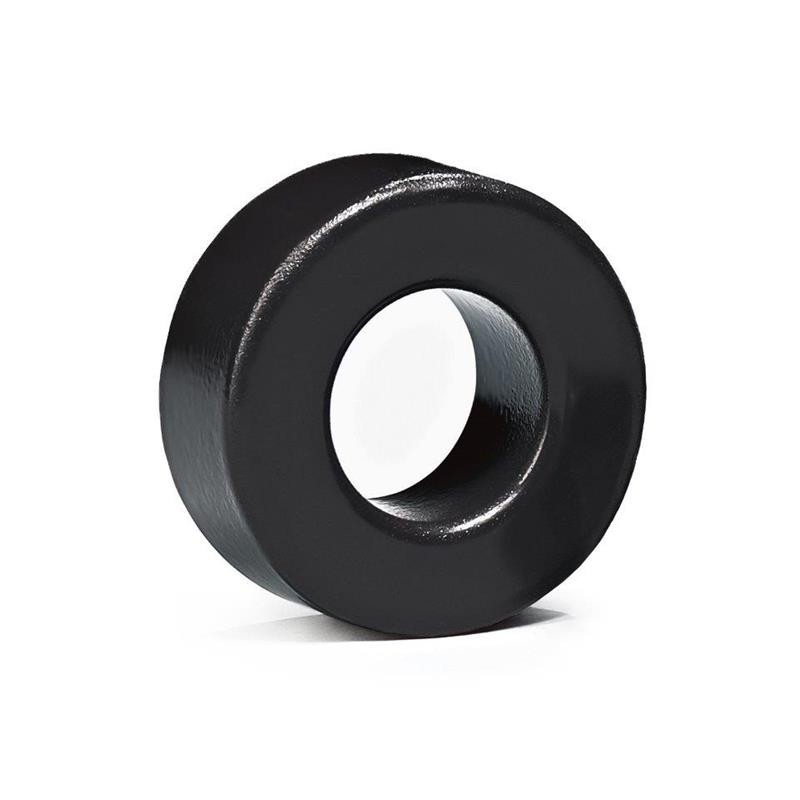

1 pcs : 0077440A7 - FERRITE CORE TOROID 59NH
    • 1 pcs : 0077440A7 - FERRITE CORE TOROID 59NH

    1 pcs : 0077440A7 - FERRITE CORE TOROID 59NH

    1AllpartsUK46160077440A7ND
    £18.77
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Coated Ferrite Core Toroid Type Length Width 1.875' (47.63mm) Diameter 0.710' (18.03mm) Height
    Product Details
    1AllpartsUK46160077440A7ND
    0077440A7
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±8%
    Part status
    Active
    Diameter
    1.875' (47.63mm)
    Material
    -
    Width
    -
    Height
    0.710' (18.03mm)
    Length
    -
    Series
    -
    Finish
    Coated
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    59 nH
    Effective Length (le) mm
    107
    Effective Area (Ae) mm²
    199
    Effective Magnetic Volume (Ve) mm³
    21300
    Initial Permeability (µi)
    26
