Description

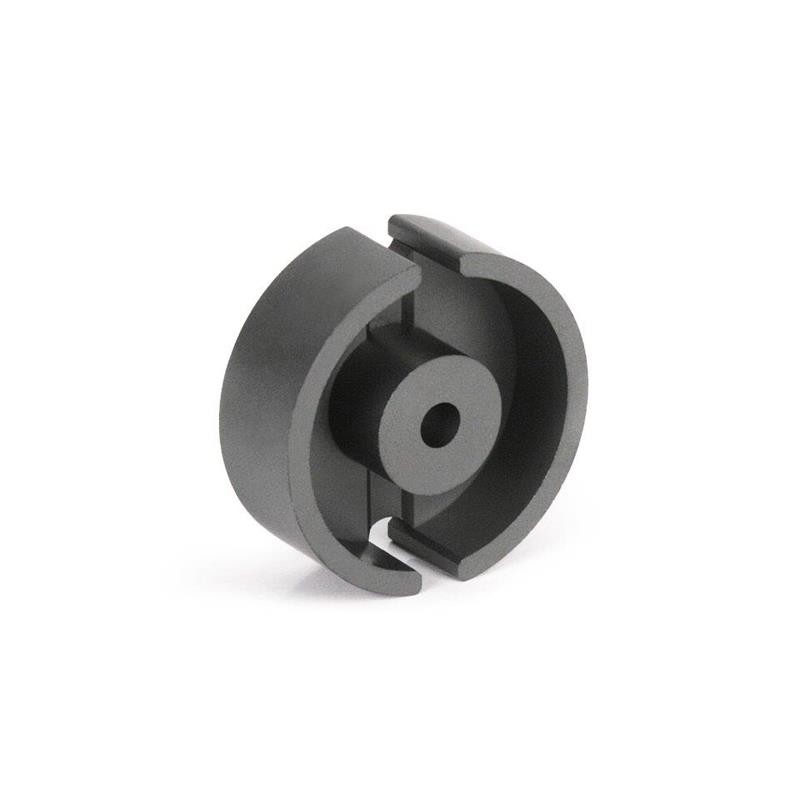

Uncoated Ferrite Core P Type Length Width 1.181' (30.00mm) Diameter 0.744' (18.90mm) Height
Product Details
1AllpartsUK46160V43019UGND
0V43019UG
3 Items
Data sheet
- Manufacturer
- Magnetics, a division of Spang & Co.
- Tolerance
- ±25%
- Part status
- Active
- Diameter
- 1.181' (30.00mm)
- Material
- -
- Width
- -
- Height
- 0.744' (18.90mm)
- Length
- -
- Series
- -
- Finish
- Uncoated
- Core Type
- P
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Inductance Factor (Al)
- 7 µH
- Effective Length (le) mm
- 45.2
- Effective Area (Ae) mm²
- 137
- Effective Magnetic Volume (Ve) mm³
- 6190
- Initial Permeability (µi)
- 2300
