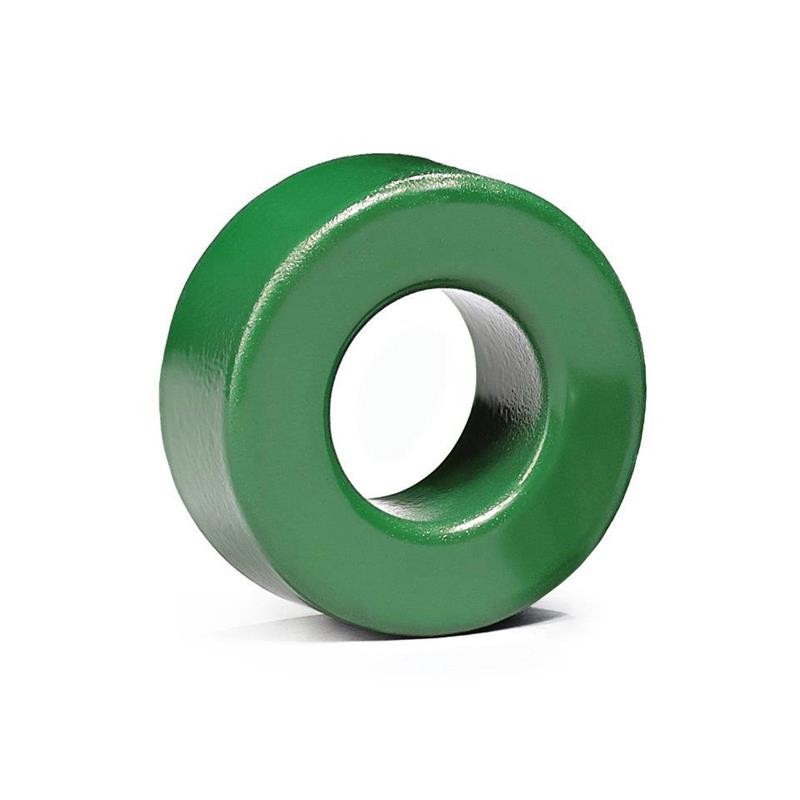

1 pcs : 0059894A2 - FERRITE CORE TOROID 75NH EDGE
    • 1 pcs : 0059894A2 - FERRITE CORE TOROID 75NH EDGE

    1 pcs : 0059894A2 - FERRITE CORE TOROID 75NH EDGE

    1AllpartsUK46160059894A2ND
    £29.58
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Coated Edge Ferrite Core Toroid Type Length Width 1.060' (26.92mm) Diameter 0.440' (11.18mm) Height
    Product Details
    1AllpartsUK46160059894A2ND
    0059894A2
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±8%
    Part status
    Active
    Diameter
    1.060' (26.92mm)
    Material
    Edge
    Width
    -
    Height
    0.440' (11.18mm)
    Length
    -
    Series
    -
    Finish
    Coated
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    75 nH
    Effective Length (le) mm
    63.5
    Effective Area (Ae) mm²
    65.4
    Effective Magnetic Volume (Ve) mm³
    4150
    Initial Permeability (µi)
    60
