Description

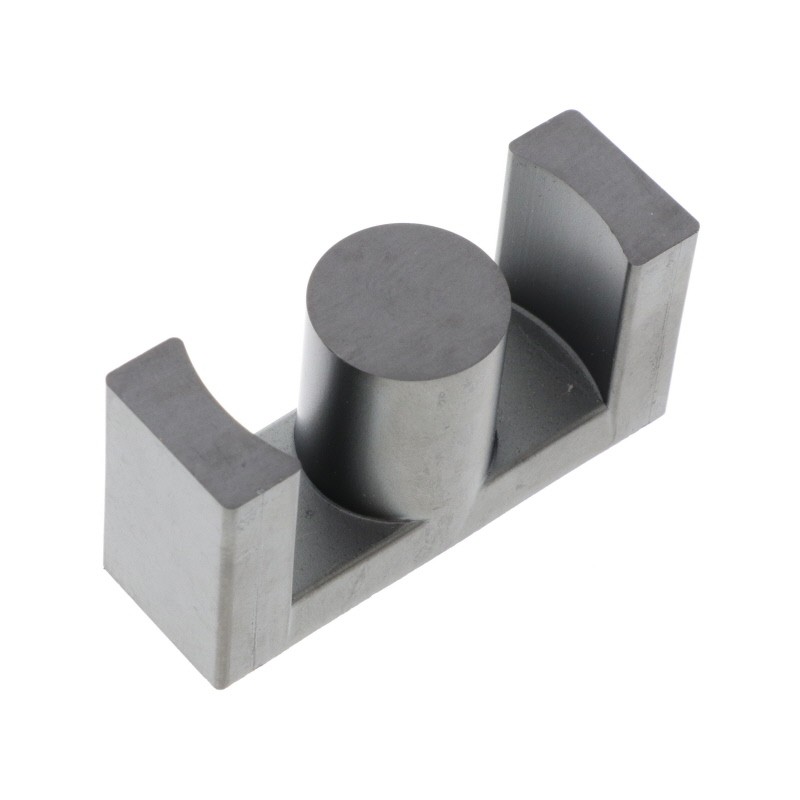

Uncoated 95 Ferrite Core ETD Type Length Width Diameter 0.878' (22.30mm) Height
Product Details
1AllpartsUK19341616ND
9595444502
3 Items
Data sheet
- Manufacturer
- Fair-Rite Products Corp.
- Tolerance
- ±25%
- Part status
- Active
- Diameter
- -
- Material
- 95
- Height
- 0.878' (22.30mm)
- Series
- -
- Finish
- Uncoated
- Core Type
- ETD
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Effective Length (le) mm
- 103.5
- Effective Area (Ae) mm²
- 173
- Core Factor (ΣI/A) mm⁻¹
- 60
- Effective Magnetic Volume (Ve) mm³
- 17940
- Minimum Core Cross Section (Amin) mm²
- 117.7
- Initial Permeability (µi)
- 3000
