Description

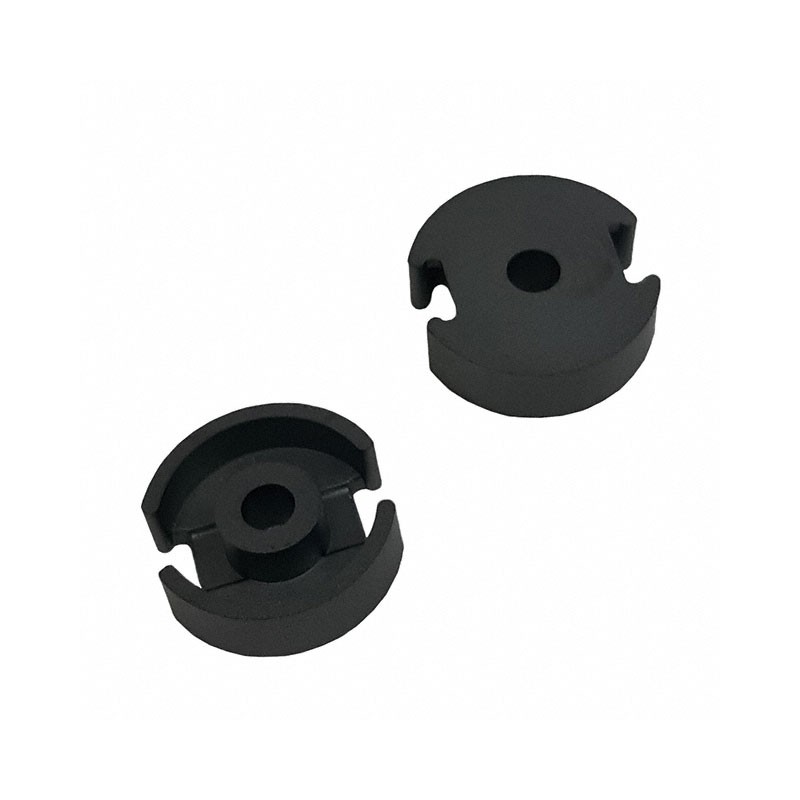

Uncoated Ferrite Core PS Type Length Width 0.709' (18.00mm) Diameter 0.211' (5.36mm) Height
Product Details
1AllpartsUK19341587ND
5698181221
3 Items
Data sheet
- Manufacturer
- Fair-Rite Products Corp.
- Tolerance
- ±25%
- Part status
- Active
- Diameter
- 0.709' (18.00mm)
- Width
- -
- Height
- 0.211' (5.36mm)
- Length
- -
- Series
- -
- Finish
- Uncoated
- Core Type
- PS
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Effective Length (le) mm
- 25.9
- Effective Area (Ae) mm²
- 43
- Core Factor (ΣI/A) mm⁻¹
- 60
- Effective Magnetic Volume (Ve) mm³
- 1120
- Initial Permeability (µi)
- 2400
