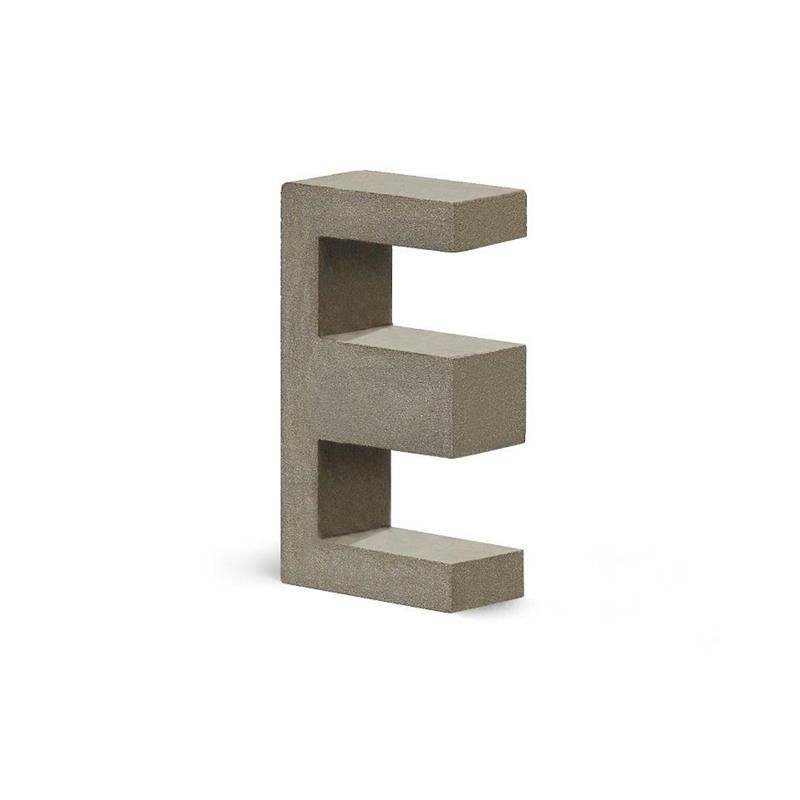

1 pcs : 00X6527E040 - FERRITE CORE E 230NH XFLUX
    • 1 pcs : 00X6527E040 - FERRITE CORE E 230NH XFLUX

    1 pcs : 00X6527E040 - FERRITE CORE E 230NH XFLUX

    1AllpartsUK461600X6527E040ND
    £29.49
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated XFlux Ferrite Core E Type 2.579' (65.51mm) Length 1.063' (27.00mm) Width Diameter 1.280' (32.51mm) Height
    Product Details
    1AllpartsUK461600X6527E040ND
    00X6527E040
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±8%
    Part status
    Active
    Diameter
    -
    Material
    XFlux
    Width
    1.063' (27.00mm)
    Height
    1.280' (32.51mm)
    Length
    2.579' (65.51mm)
    Series
    -
    Finish
    Uncoated
    Core Type
    E
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    230 nH
    Effective Length (le) mm
    147
    Effective Area (Ae) mm²
    540
    Effective Magnetic Volume (Ve) mm³
    79400
    Initial Permeability (µi)
    40
