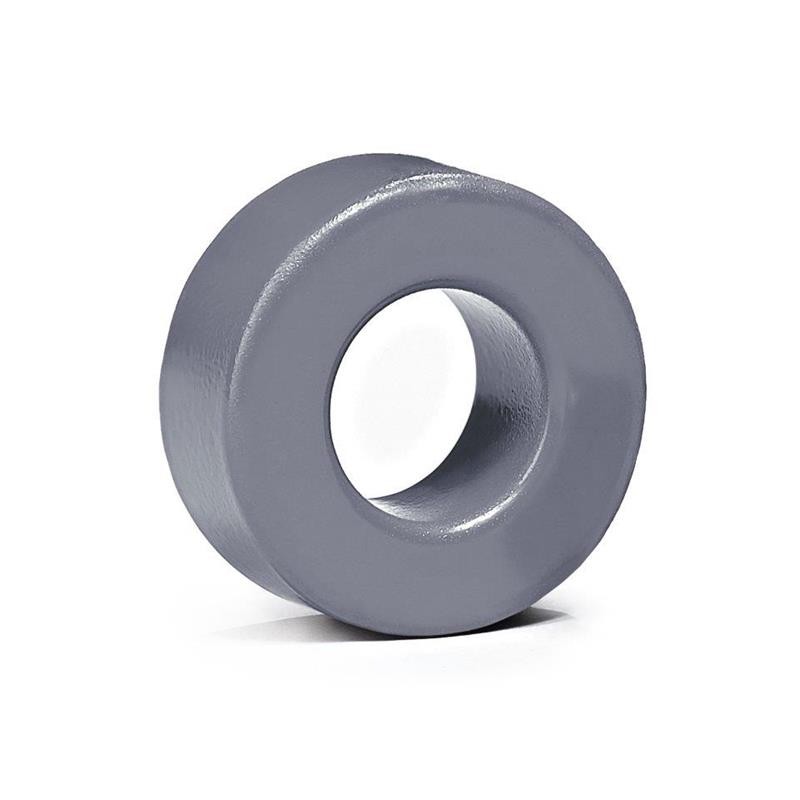

1 pcs : ZW46113TC - FERRITE CORE TOROID 13.69UH W
    • 1 pcs : ZW46113TC - FERRITE CORE TOROID 13.69UH W

    1 pcs : ZW46113TC - FERRITE CORE TOROID 13.69UH W

    1AllpartsUK4616ZW46113TCND
    £38.63
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Epoxy W Ferrite Core Toroid Type Length Width 2.468' (62.69mm) Diameter 0.530' (13.47mm) Height
    Product Details
    1AllpartsUK4616ZW46113TCND
    ZW46113TC
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±30%
    Part status
    Active
    Diameter
    2.468' (62.69mm)
    Material
    W
    Width
    -
    Height
    0.530' (13.47mm)
    Length
    -
    Series
    -
    Finish
    Epoxy
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    13.69 µH
    Effective Length (le) mm
    145
    Effective Area (Ae) mm²
    157
    Effective Magnetic Volume (Ve) mm³
    22774
    Initial Permeability (µi)
    10000
