Description

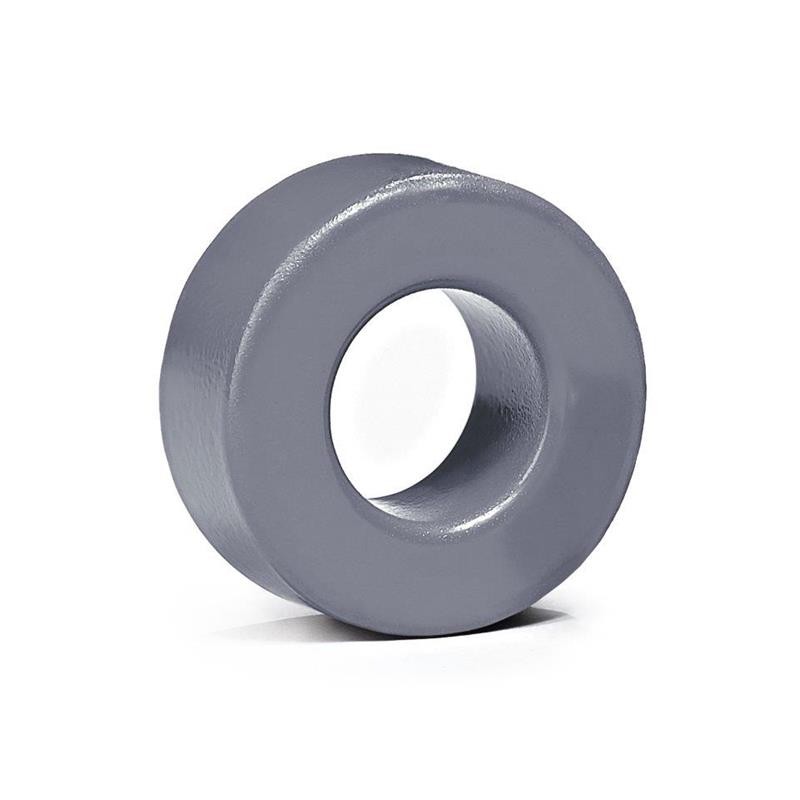

Epoxy W Ferrite Core Toroid Type Length Width 1.500' (38.10mm) Diameter 1.045' (26.55mm) Height
Product Details
1AllpartsUK4616ZW43825TCND
ZW43825TC
3 Items
Data sheet
- Manufacturer
- Magnetics, a division of Spang & Co.
- Tolerance
- ±30%
- Part status
- Active
- Diameter
- 1.500' (38.10mm)
- Material
- W
- Width
- -
- Height
- 1.045' (26.55mm)
- Length
- -
- Series
- -
- Finish
- Epoxy
- Core Type
- Toroid
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Inductance Factor (Al)
- 33.4 µH
- Effective Length (le) mm
- 82.9
- Effective Area (Ae) mm²
- 232
- Effective Magnetic Volume (Ve) mm³
- 19190
- Initial Permeability (µi)
- 10000
