Description

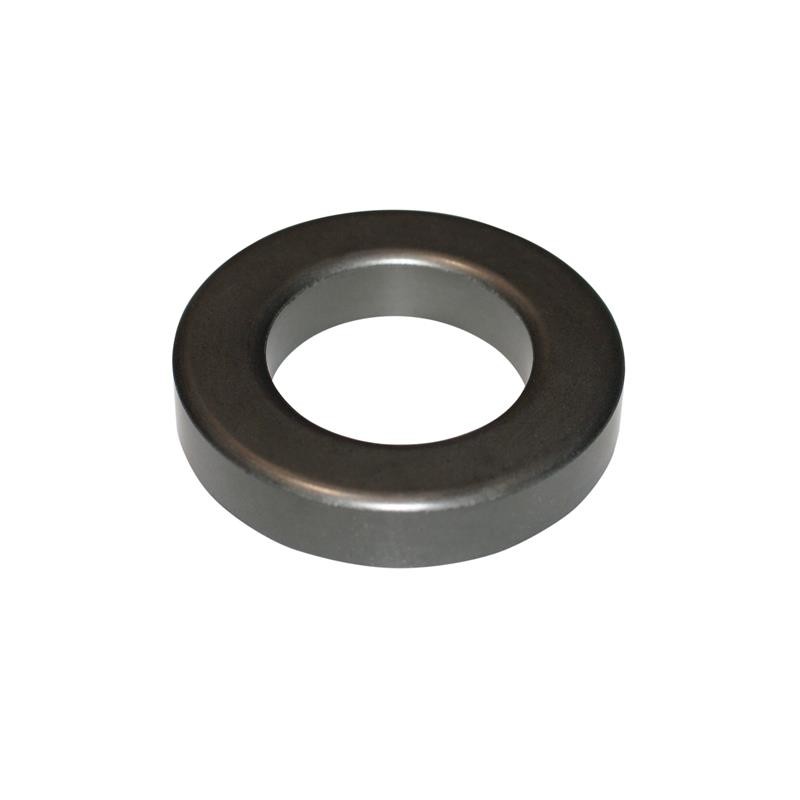

Uncoated 95 Ferrite Core Toroid Type Length Width 2.402' (61.00mm) Diameter 0.500' (12.70mm) Height
Product Details
1AllpartsUK19345995003801ND
5995003801
3 Items
Data sheet
- Manufacturer
- Fair-Rite Products Corp.
- Tolerance
- ±25%
- Part status
- Active
- Diameter
- 2.402' (61.00mm)
- Material
- 95
- Width
- -
- Height
- 0.500' (12.70mm)
- Length
- -
- Series
- HF
- Finish
- Uncoated
- Core Type
- Toroid
- Packaging
- Tray
- Supplier Device Package
- -
- Gap
- Ungapped
- Inductance Factor (Al)
- 4.2 µH
- Effective Length (le) mm
- 14.4
- Effective Area (Ae) mm²
- 16
- Core Factor (ΣI/A) mm⁻¹
- 0.00897
- Effective Magnetic Volume (Ve) mm³
- 23080
- Initial Permeability (µi)
- 3000
