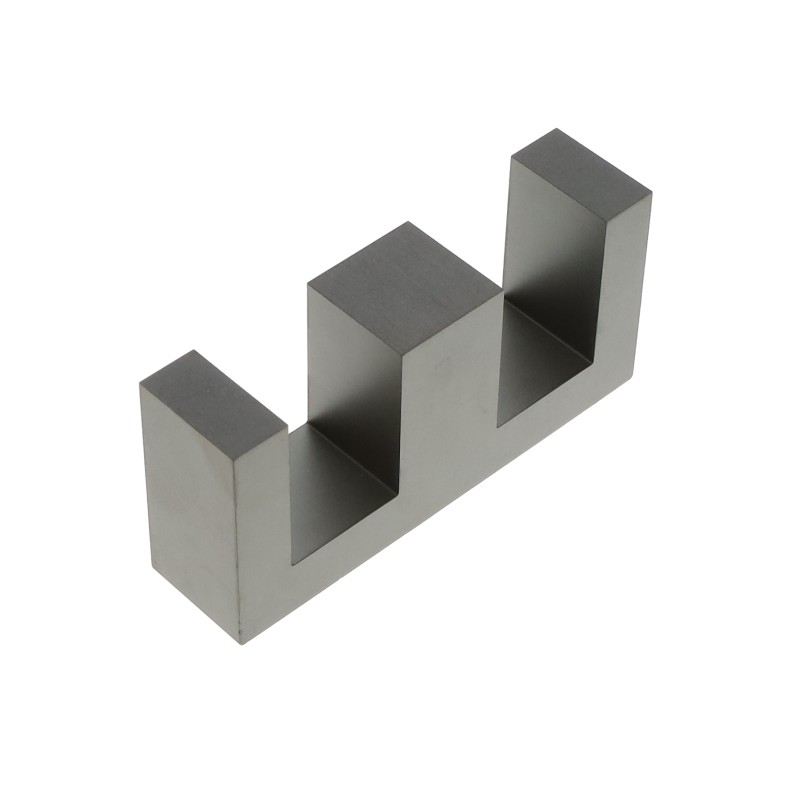

    1 pcs : B66375G0500X187 - FERRITE CORE E N87
    • 1 pcs : B66375G0500X187 - FERRITE CORE E N87

    1 pcs : B66375G0500X187 - FERRITE CORE E N87

    1electronicpartsUK495B66375G0500X187ND
    £44.74
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated N87 Ferrite Core E Type 3.150' (80.00mm) Length 0.795' (20.20mm) Width Diameter 1.516' (38.50mm) Height
    Product Details
    EPCOS - TDK Electronics
    1electronicpartsUK495B66375G0500X187ND
    B66375G0500X187
    3 Items

    Data sheet

    Manufacturer
    EPCOS - TDK Electronics
    Tolerance
    -
    Part status
    Active
    Diameter
    -
    Material
    N87
    Width
    0.795' (20.20mm)
    Height
    1.516' (38.50mm)
    Length
    3.150' (80.00mm)
    Series
    E80/38/20
    Finish
    Uncoated
    Core Type
    E
    Packaging
    Box
    Supplier Device Package
    E 80 x 38 x 20
    Gap
    Gapped
    Effective Length (le) mm
    184
    Effective Area (Ae) mm²
    390
    Core Factor (ΣI/A) mm⁻¹
    0.47
    Effective Magnetic Volume (Ve) mm³
    71800
    Minimum Core Cross Section (Amin) mm²
    388
    Initial Permeability (µi)
    2200
