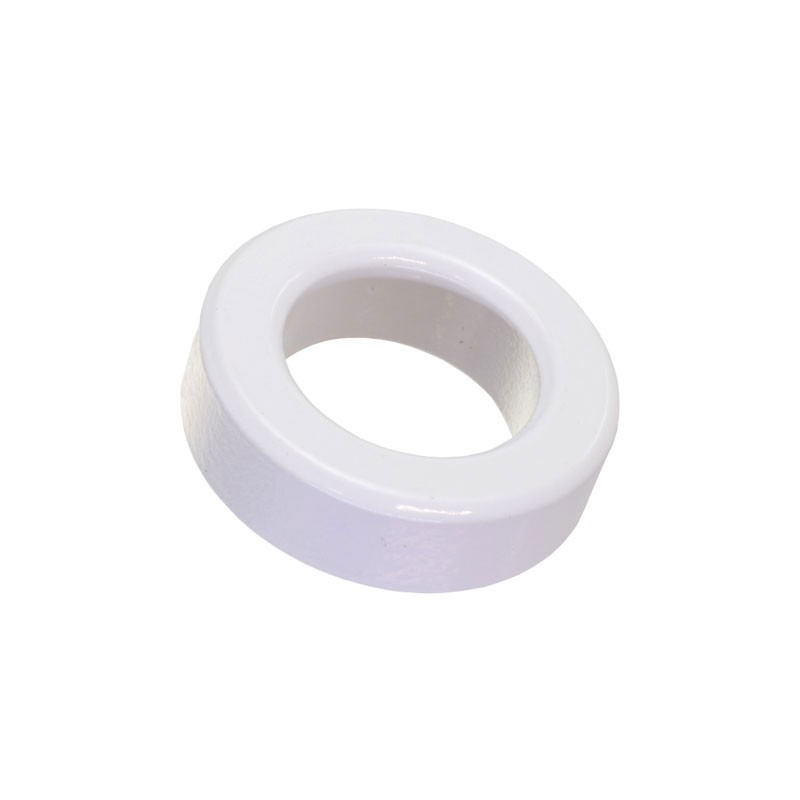

1 pcs : TX42/26/13-3E10-M - FERRITE CORE TOROID
    • 1 pcs : TX42/26/13-3E10-M - FERRITE CORE TOROID

    1 pcs : TX42/26/13-3E10-M - FERRITE CORE TOROID

    1AllpartsUK17791617ND
    FERROXCUBE
    £18.56
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Epoxy Ferrite Core Toroid Type Length Width 1.697' (43.15mm) Diameter 0.531' (13.50mm) Height
    Product Details
    FERROXCUBE
    1AllpartsUK17791617ND
    TX42/26/13-3E10-M
    3 Items

    Data sheet

    Manufacturer
    FERROXCUBE
    Tolerance
    ±30%
    Part status
    Active
    Diameter
    1.697' (43.15mm)
    Width
    -
    Height
    0.531' (13.50mm)
    Length
    -
    Series
    -
    Finish
    Epoxy
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    TX 42 x 26 x 13
    Gap
    Ungapped
    Effective Permeability (µe)
    10000
    Effective Length (le) mm
    103
    Effective Area (Ae) mm²
    95.8
    Core Factor (ΣI/A) mm⁻¹
    1.076
    Effective Magnetic Volume (Ve) mm³
    9860
