Description

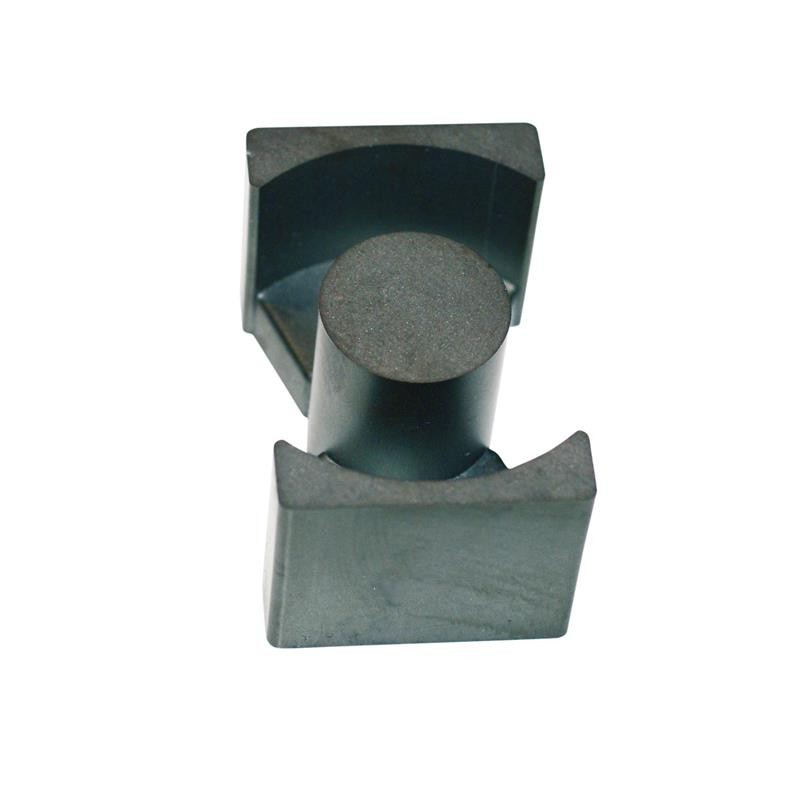

Uncoated 78 Ferrite Core PQ Type 1.969' (50.00mm) Length 1.260' (32.00mm) Width Diameter Height
Product Details
1AllpartsUK19346678505021ND
6678505021
3 Items
Data sheet
- Manufacturer
- Fair-Rite Products Corp.
- Tolerance
- ±25%
- Part status
- Active
- Diameter
- -
- Material
- 78
- Width
- 1.260' (32.00mm)
- Length
- 1.969' (50.00mm)
- Series
- -
- Finish
- Uncoated
- Core Type
- PQ
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Effective Length (le) mm
- 114.7
- Effective Area (Ae) mm²
- 319
- Core Factor (ΣI/A) mm⁻¹
- 35.9
- Effective Magnetic Volume (Ve) mm³
- 36630
- Minimum Core Cross Section (Amin) mm²
- 314.2
- Initial Permeability (µi)
- 2300
