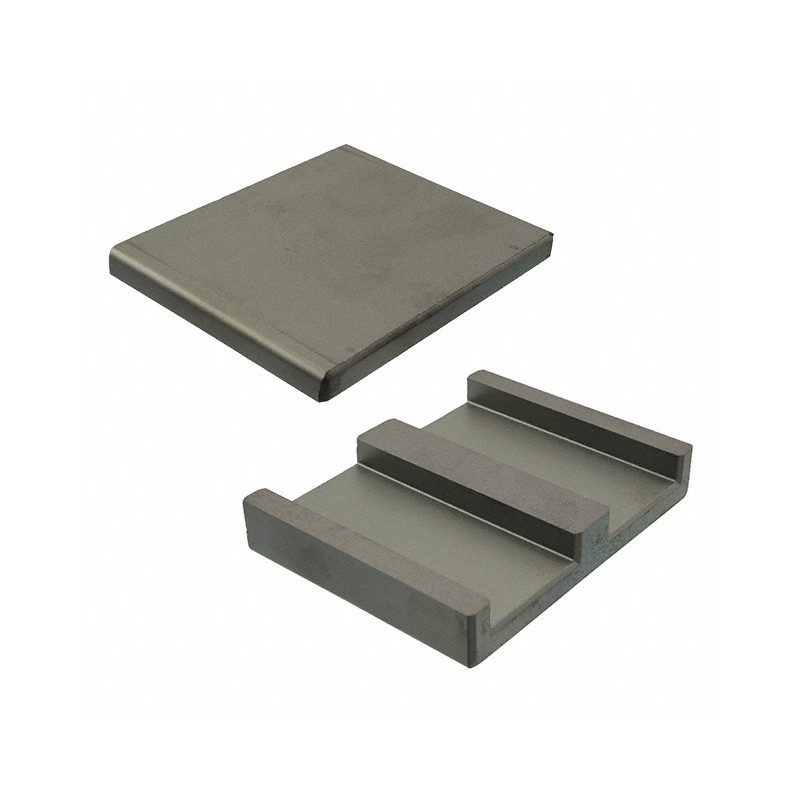

    1 pcs : 7895400721 - FERRITE CORE PLANAR E/I 95 SET
    • 1 pcs : 7895400721 - FERRITE CORE PLANAR E/I 95 SET

    1 pcs : 7895400721 - FERRITE CORE PLANAR E/I 95 SET

    1AllpartsUK19341121ND
    £41.52
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated 95 Ferrite Core Planar E/I Type 2.520' (64.00mm) Length 2.008' (51.00mm) Width Diameter 0.407' (10.34mm) Height
    Product Details
    Fair-Rite Products Corp.
    1AllpartsUK19341121ND
    7895400721
    3 Items

    Data sheet

    Manufacturer
    Fair-Rite Products Corp.
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    95
    Width
    2.008' (51.00mm)
    Height
    0.407' (10.34mm)
    Length
    2.520' (64.00mm)
    Series
    -
    Finish
    Uncoated
    Core Type
    Planar E/I
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Effective Length (le) mm
    70
    Effective Area (Ae) mm²
    518
    Core Factor (ΣI/A) mm⁻¹
    14
    Effective Magnetic Volume (Ve) mm³
    36300
    Minimum Core Cross Section (Amin) mm²
    515
    Initial Permeability (µi)
    3000
