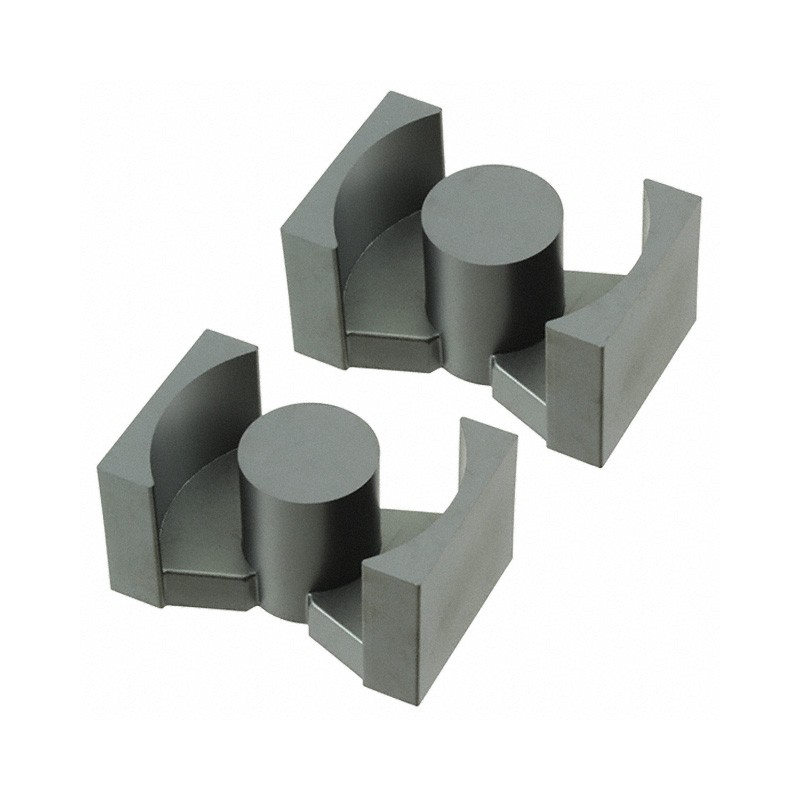

    1 pcs : B65879A0000R087 - FERRITE CORE PQ 6.3UH N87 2PCS
    • 1 pcs : B65879A0000R087 - FERRITE CORE PQ 6.3UH N87 2PCS

    1 pcs : B65879A0000R087 - FERRITE CORE PQ 6.3UH N87 2PCS

    1electronicpartsUK49575905ND
    £17.23
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated N87 Ferrite Core PQ Type 1.260' (32.00mm) Length 0.866' (22.00mm) Width Diameter 0.404' (10.25mm) Height
    Product Details
    EPCOS - TDK Electronics
    1electronicpartsUK49575905ND
    B65879A0000R087
    3 Items

    Data sheet

    Manufacturer
    EPCOS - TDK Electronics
    Tolerance
    -20%, +30%
    Part status
    Active
    Diameter
    -
    Material
    N87
    Width
    0.866' (22.00mm)
    Height
    0.404' (10.25mm)
    Length
    1.260' (32.00mm)
    Series
    PQ32/20
    Finish
    Uncoated
    Core Type
    PQ
    Packaging
    Box
    Supplier Device Package
    PQ 32 x 20
    Gap
    Ungapped
    Effective Permeability (µe)
    1580
    Inductance Factor (Al)
    6.3 µH
    Effective Length (le) mm
    48.4
    Effective Area (Ae) mm²
    154.2
    Core Factor (ΣI/A) mm⁻¹
    0.314
    Effective Magnetic Volume (Ve) mm³
    7460
    Minimum Core Cross Section (Amin) mm²
    127.5
    Initial Permeability (µi)
    2200
