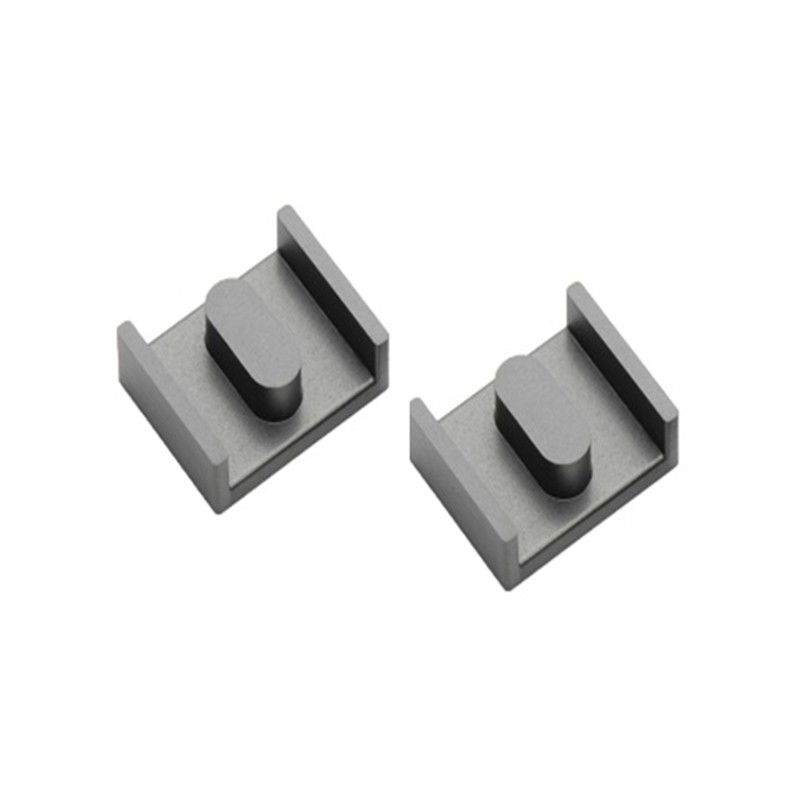

    1 pcs : PC95EL13X4.4-Z - FERRITE CORE EL 3.16UH PCS95 2PC
    • 1 pcs : PC95EL13X4.4-Z - FERRITE CORE EL 3.16UH PCS95 2PC

    1 pcs : PC95EL13X4.4-Z - FERRITE CORE EL 3.16UH PCS95 2PC

    1electronicpartsUK445180858ND
    £9.72
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core EL Type 0.512' (13.00mm) Length 0.409' (10.40mm) Width Diameter 0.089' (2.25mm) Height
    Product Details
    TDK Corporation
    1electronicpartsUK445180858ND
    PC95EL13X4.4-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.409' (10.40mm)
    Height
    0.089' (2.25mm)
    Length
    0.512' (13.00mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    EL
    Packaging
    Tray
    Supplier Device Package
    EI 13 x 4.4
    Gap
    Ungapped
    Inductance Factor (Al)
    3.16 µH
    Effective Length (le) mm
    23.1
    Effective Area (Ae) mm²
    15.4
    Core Factor (ΣI/A) mm⁻¹
    0.67
    Effective Magnetic Volume (Ve) mm³
    357
    Minimum Core Cross Section (Amin) mm²
    22.4
