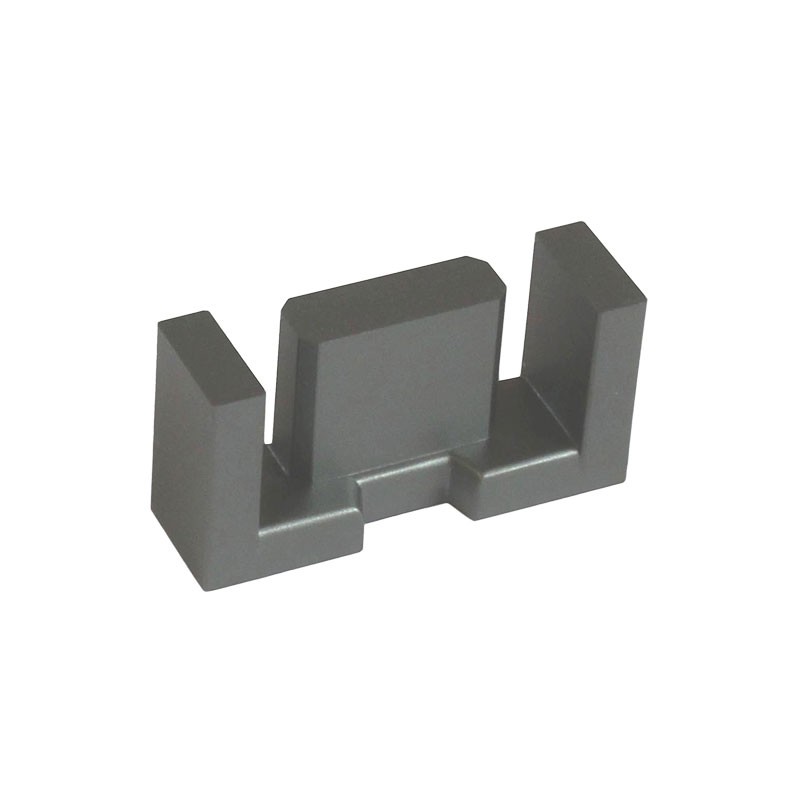

    1 pcs : EFD10/5/3-3F46-S - FERRITE CORE EFD 3F46 2PC SET
    • 1 pcs : EFD10/5/3-3F46-S - FERRITE CORE EFD 3F46 2PC SET

    1 pcs : EFD10/5/3-3F46-S - FERRITE CORE EFD 3F46 2PC SET

    1AllpartsUK17791071ND
    FERROXCUBE
    £10.78
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated 3F46 Ferrite Core EFD Type 0.413' (10.50mm) Length 0.106' (2.70mm) Width Diameter 0.205' (5.20mm) Height
    Product Details
    FERROXCUBE
    1AllpartsUK17791071ND
    EFD10/5/3-3F46-S
    3 Items

    Data sheet

    Manufacturer
    FERROXCUBE
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    3F46
    Width
    0.106' (2.70mm)
    Height
    0.205' (5.20mm)
    Length
    0.413' (10.50mm)
    Series
    -
    Finish
    Uncoated
    Core Type
    EFD
    Packaging
    Bulk
    Supplier Device Package
    EFD 10 x 5 x 3
    Gap
    Ungapped
    Effective Permeability (µe)
    655
    Effective Length (le) mm
    23.7
    Effective Area (Ae) mm²
    7.2
    Core Factor (ΣI/A) mm⁻¹
    3.29
    Effective Magnetic Volume (Ve) mm³
    171
    Minimum Core Cross Section (Amin) mm²
    6.5
