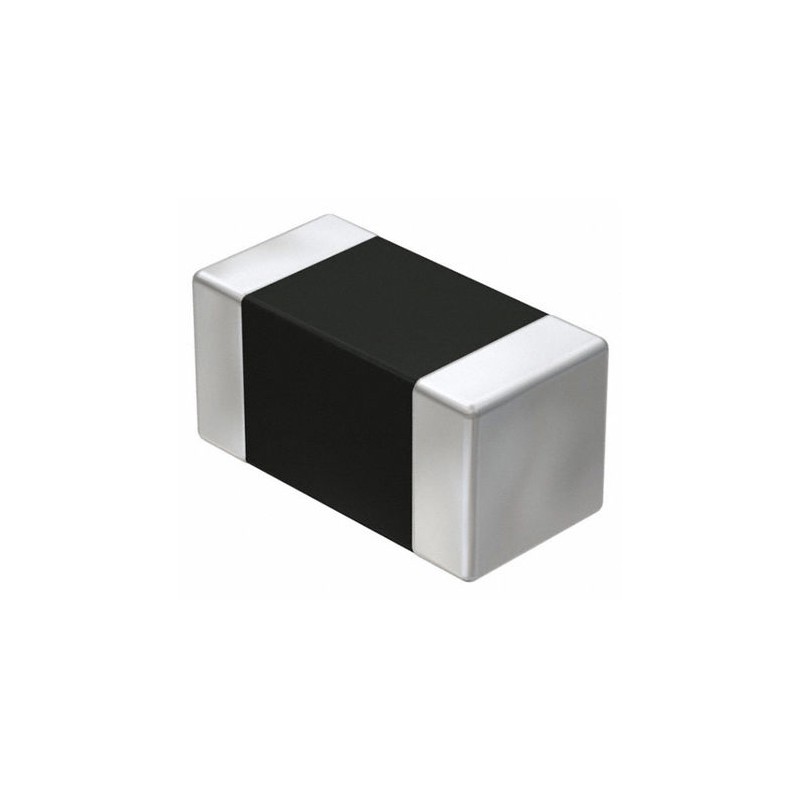

    200 pcs - 742792641 Wurth Elektronik Ferrite Bead, 1.6 x 0.8 x 0.8mm (0603 (1608M)), 300Ω impedance at 100 MHz
    • 200 pcs - 742792641 Wurth Elektronik Ferrite Bead, 1.6 x 0.8 x 0.8mm (0603 (1608M)), 300Ω impedance at 100 MHz

    200 pcs - 742792641 Wurth Elektronik Ferrite Bead, 1.6 x 0.8 x 0.8mm (0603 (1608M)), 300Ω impedance at 100 MHz

    200(Allparts)1241834
    200 pcs - 742792641 Wurth Elektronik Ferrite Bead, 1.6 x 0.8 x 0.8mm (0603 (1608M)), 300Ω impedance at 100 MHz
    £63.04
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    High-Speed Multilayer Ferrite SMD - WE-CBF SeriesExcellent anti-EMI properties and low DC resistancePlaced very close next to the interference source even with smallest size 0402, maximum impedance 1000ΩReliable Ni-Sn electrodes Ideal for data line filtering and voltage de-couplingHigh rated current up to 6A Recommended for reflow solderingApplications:High Speed: USB 2.0, IEEE 1394, LVDS Wide Band: Control signals, RS232, RS422, DC/DC converter, etc. High Current: Current supply, DC/DC converter etc.
    Product Details
    Wurth Elektronik
    200(Allparts)1241834
    742792641
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Dimensions
    1.6 x 0.8 x 0.8mm
    Material
    Ferrite
    Height
    0.8mm
    Application
    Anti EMI, Control Signals, DC/DC Converter, Fast Bus Signals, HDD, High Current, High Frequency, High Speed, Line Filter, LVDS, Power Supply, RS232, RS422, USB 2.0
    Length
    1.6mm
    Current rating
    2A
    Depth
    0.8mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    WE-CBF
    Type
    Ferrite Bead
    Package Type
    0603 (1608M)
    Impedance at 100 MHz
    300Ω
    Maximum DC Resistance
    150mΩ
