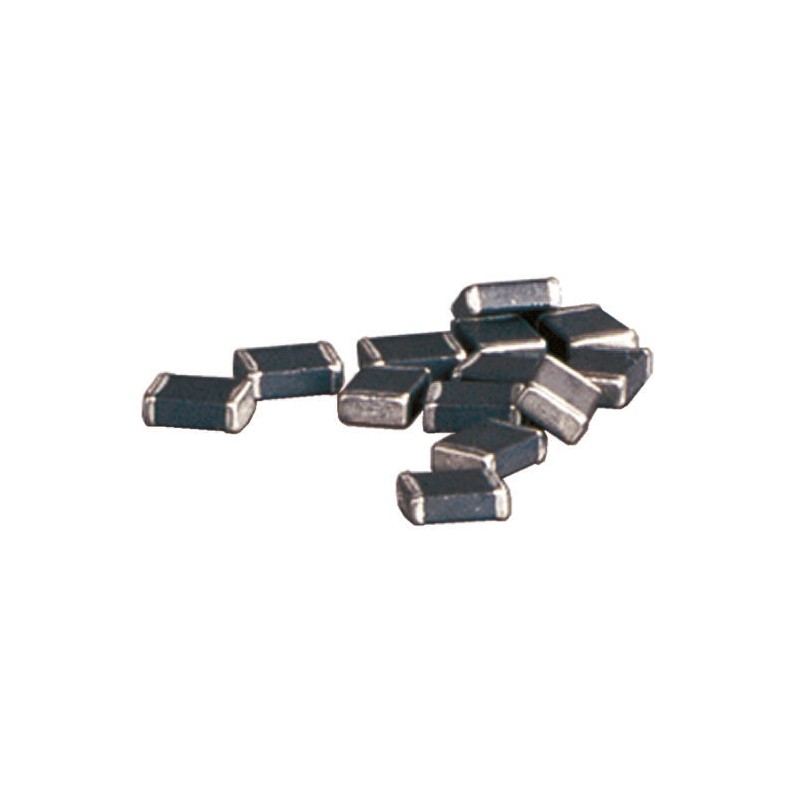

    200 pcs - 74279271 Wurth Elektronik Ferrite Bead (EMI Suppression), 1 x 0.5 x 0.5mm (0402 (1005M)), 120Ω impedance at 100 MHz
    • 200 pcs - 74279271 Wurth Elektronik Ferrite Bead (EMI Suppression), 1 x 0.5 x 0.5mm (0402 (1005M)), 120Ω impedance at 100 MHz

    200 pcs - 74279271 Wurth Elektronik Ferrite Bead (EMI Suppression), 1 x 0.5 x 0.5mm (0402 (1005M)), 120Ω impedance at 100 MHz

    200(Allparts)6693973P
    200 pcs - 74279271 Wurth Elektronik Ferrite Bead (EMI Suppression), 1 x 0.5 x 0.5mm (0402 (1005M)), 120Ω impedance at 100 MHz
    £61.48
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    High-Speed Multilayer Ferrite SMD - WE-CBF SeriesExcellent anti-EMI properties and low DC resistancePlaced very close next to the interference source even with smallest size 0402, maximum impedance 1000ΩReliable Ni-Sn electrodes Ideal for data line filtering and voltage de-couplingHigh rated current up to 6A Recommended for reflow solderingApplications:High Speed: USB 2.0, IEEE 1394, LVDS Wide Band: Control signals, RS232, RS422, DC/DC converter, etc. High Current: Current supply, DC/DC converter etc.Reliable Ni-Sn electrodesHigh rated current up to 6 AOperating temperature: –55 ºC to +125 ºCPerfect as data line filter and for uncoupling of distribution voltage
    Product Details
    Wurth Elektronik
    200(Allparts)6693973P
    74279271
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Dimensions
    1 x 0.5 x 0.5mm
    Material
    Ferrite
    Height
    0.5mm
    Application
    Suppression Components
    Length
    1mm
    Current rating
    350mA
    Depth
    0.5mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    WE-CBF
    Type
    EMI Suppression
    Package Type
    0402 (1005M)
    Impedance at 100 MHz
    120Ω
    Maximum DC Resistance
    350mΩ
