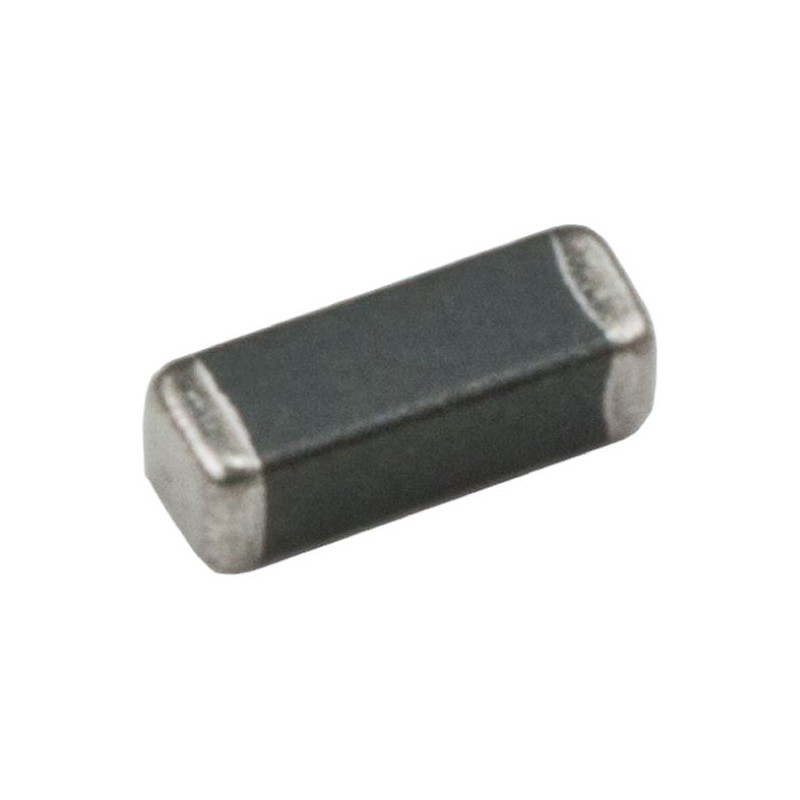

    100 pcs - BLM41PG181SN1L Murata Ferrite Bead (Chip Ferrite Bead), 4.5 x 1.6 x 1.6mm (1806 (4516M)), 180Ω impedance at 100 MHz
    • 100 pcs - BLM41PG181SN1L Murata Ferrite Bead (Chip Ferrite Bead), 4.5 x 1.6 x 1.6mm (1806 (4516M)), 180Ω impedance at 100 MHz

    100 pcs - BLM41PG181SN1L Murata Ferrite Bead (Chip Ferrite Bead), 4.5 x 1.6 x 1.6mm (1806 (4516M)), 180Ω impedance at 100 MHz

    100(Allparts)7241592
    MURATA
    100 pcs - BLM41PG181SN1L Murata Ferrite Bead (Chip Ferrite Bead), 4.5 x 1.6 x 1.6mm (1806 (4516M)), 180Ω impedance at 100 MHz
    £56.46
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SMD 1806 Ferrite Filters- BLM41P SeriesBLM series ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. The nickel barrier construction of the external electrodes provides excellent resistance to solder heat. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance.ApplicationsThis series of ferrite beads are designed for general use applications.
    Product Details
    MURATA
    100(Allparts)7241592
    BLM41PG181SN1L
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Dimensions
    4.5 x 1.6 x 1.6mm
    Material
    Ferrite
    Height
    1.6mm
    Application
    EMI Suppression, Power Supplies
    Length
    4.5mm
    Current rating
    3.5A
    Depth
    1.6mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    BLM41PG
    Type
    Chip Ferrite Bead
    Package Type
    1806 (4516M)
    Impedance at 100 MHz
    180Ω
    Maximum DC Resistance
    20mΩ
