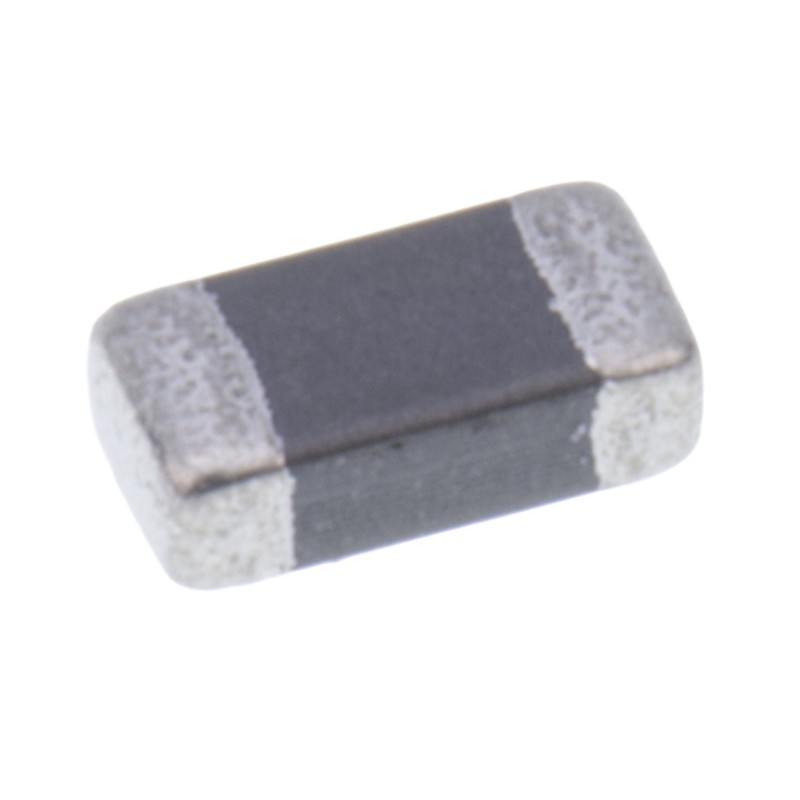

    100 pcs - BLM31PG601SN1L Murata Ferrite Bead (Chip Ferrite Bead), 3.2 x 1.6 x 1.1mm (1206 (3216M)), 600Ω impedance at 100 MHz
    • 100 pcs - BLM31PG601SN1L Murata Ferrite Bead (Chip Ferrite Bead), 3.2 x 1.6 x 1.1mm (1206 (3216M)), 600Ω impedance at 100 MHz

    100 pcs - BLM31PG601SN1L Murata Ferrite Bead (Chip Ferrite Bead), 3.2 x 1.6 x 1.1mm (1206 (3216M)), 600Ω impedance at 100 MHz

    100(Allparts)7241582
    MURATA
    100 pcs - BLM31PG601SN1L Murata Ferrite Bead (Chip Ferrite Bead), 3.2 x 1.6 x 1.1mm (1206 (3216M)), 600Ω impedance at 100 MHz
    £44.68
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SMD 1206 Ferrite Filters- BLM31P seriesBLM series ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance. Excellent solder heat resistance is provided by the nickel barrier construction of the external electrodes.This series of ferrite beads are designed for general use applications.
    Product Details
    MURATA
    100(Allparts)7241582
    BLM31PG601SN1L
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Dimensions
    3.2 x 1.6 x 1.1mm
    Material
    Ferrite
    Height
    1.1mm
    Application
    Power Supplies
    Length
    3.2mm
    Current rating
    1.5A
    Depth
    1.6mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    BLM31PG
    Type
    Chip Ferrite Bead
    Package Type
    1206 (3216M)
    Impedance at 100 MHz
    600Ω
    Maximum DC Resistance
    80mΩ
