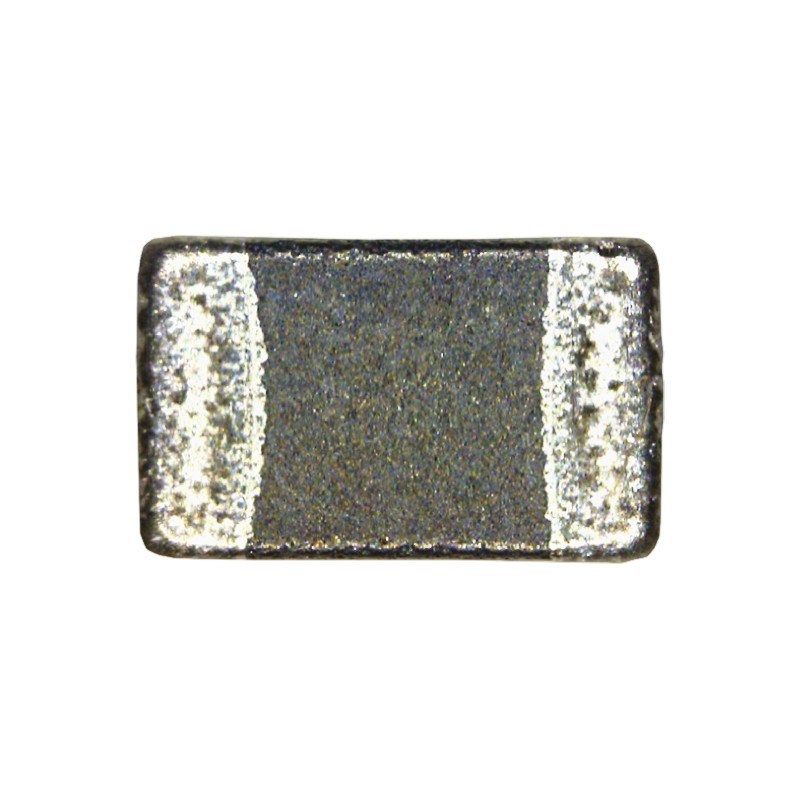

    100 pcs - BLM21BD272SN1L Murata Ferrite Bead (Chip Ferrite Bead), 2 x 1.25 x 1.25mm (0805 (2012M)), 2700Ω impedance at 100 MHz
    • 100 pcs - BLM21BD272SN1L Murata Ferrite Bead (Chip Ferrite Bead), 2 x 1.25 x 1.25mm (0805 (2012M)), 2700Ω impedance at 100 MHz

    100 pcs - BLM21BD272SN1L Murata Ferrite Bead (Chip Ferrite Bead), 2 x 1.25 x 1.25mm (0805 (2012M)), 2700Ω impedance at 100 MHz

    100(Allparts)7241526
    MURATA
    100 pcs - BLM21BD272SN1L Murata Ferrite Bead (Chip Ferrite Bead), 2 x 1.25 x 1.25mm (0805 (2012M)), 2700Ω impedance at 100 MHz
    £33.36
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SMD 0805 Ferrite Filters- BLM21B SeriesThe BLM series of ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. At noise frequencies, these ferrite beads are designed to function nearly as resistors, leaving signal wave forms undistorted and reducing the possibility of resonance. The nickel barrier construction of the external electrodes enables excellent solder heat protection. BLM_P variants feature low DC resistance and are ideal for high current circuits.This series of ferrite beads are designed for general use applications.
    Product Details
    MURATA
    100(Allparts)7241526
    BLM21BD272SN1L
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Dimensions
    2 x 1.25 x 1.25mm
    Material
    Ferrite
    Height
    1.25mm
    Application
    EMI Suppression Filter, High Speed Signal Lines
    Length
    2mm
    Current rating
    200mA
    Depth
    1.25mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    BLM21BD
    Type
    Chip Ferrite Bead
    Package Type
    0805 (2012M)
    Impedance at 100 MHz
    2700Ω
    Maximum DC Resistance
    800mΩ
