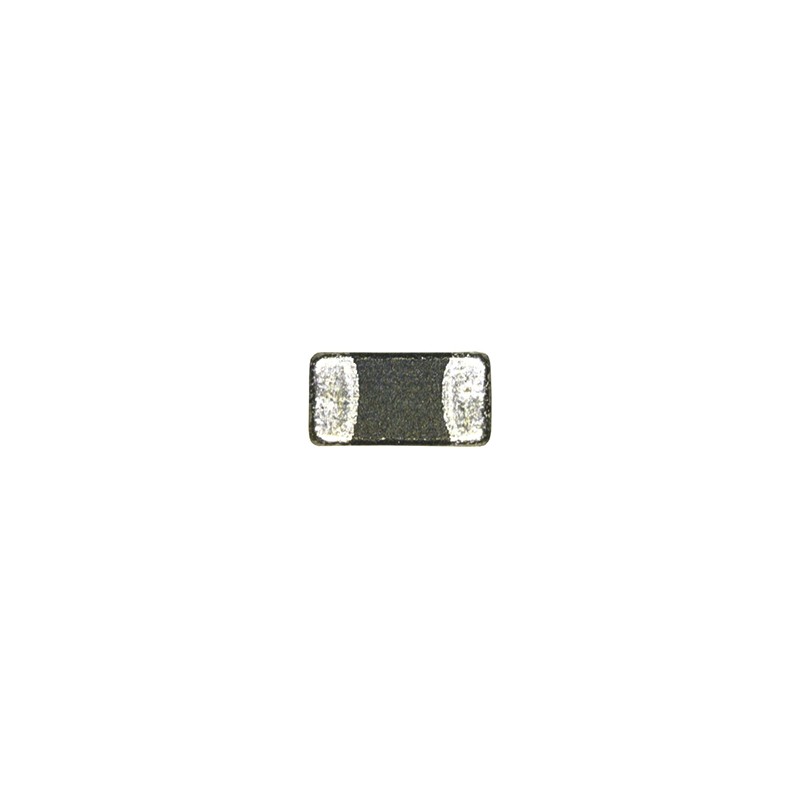

    100 pcs - BLM18EG331TN1D Murata Ferrite Bead (Chip Ferrite Bead), 1.6 x 0.8 x 0.5mm (0603 (1608M)), 330Ω impedance at 100 MHz, 4
    • 100 pcs - BLM18EG331TN1D Murata Ferrite Bead (Chip Ferrite Bead), 1.6 x 0.8 x 0.5mm (0603 (1608M)), 330Ω impedance at 100 MHz, 4

    100 pcs - BLM18EG331TN1D Murata Ferrite Bead (Chip Ferrite Bead), 1.6 x 0.8 x 0.5mm (0603 (1608M)), 330Ω impedance at 100 MHz, 4

    100(Allparts)8119613
    MURATA
    100 pcs - BLM18EG331TN1D Murata Ferrite Bead (Chip Ferrite Bead), 1.6 x 0.8 x 0.5mm (0603 (1608M)), 330Ω impedance at 100 MHz, 450Ω impedance at
    £18.40
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SMD 0603 Ferrite Filters- BLM18EG/GG/HB/HD/HE/HG/HK SeriesBLM series ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. Excellent solder heat resistance is provided by the nickel barrier construction of the external electrodes. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance.This series of ferrite beads are designed for general use applications.
    Product Details
    MURATA
    100(Allparts)8119613
    BLM18EG331TN1D
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Dimensions
    1.6 x 0.8 x 0.5mm
    Material
    Ferrite
    Height
    0.5mm
    Application
    EMI Suppression Filter, GHz Band General Use (Low DC Resistance Type)
    Length
    1.6mm
    Current rating
    500mA
    Depth
    0.8mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    BLM18EG
    Type
    Chip Ferrite Bead
    Package Type
    0603 (1608M)
    Impedance at 100 MHz
    330Ω
    Maximum DC Resistance
    210mΩ
    Impedance at 1 GHz
    450Ω
