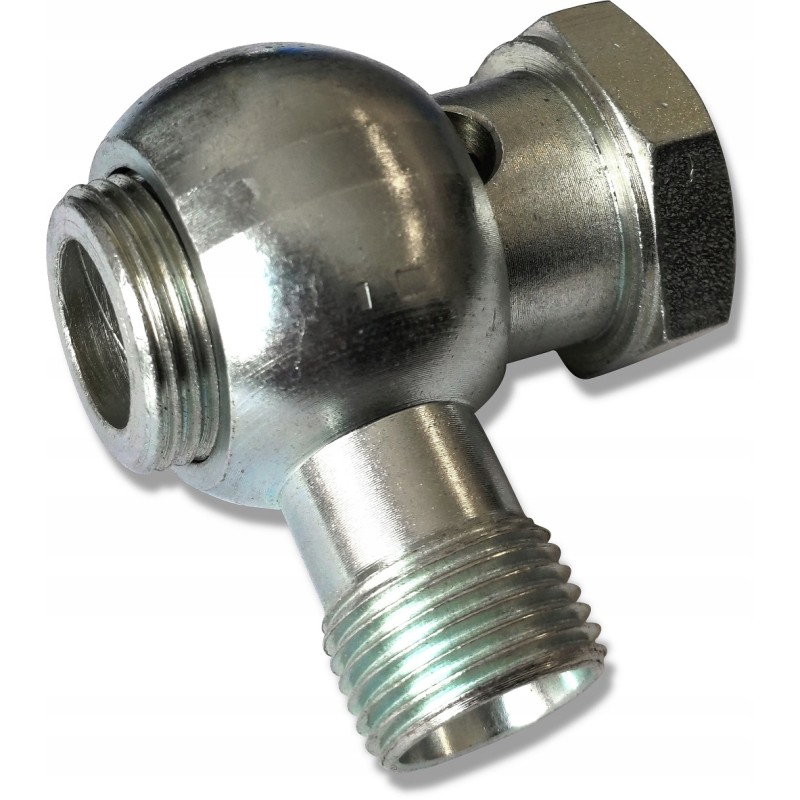

Eye connector m18 fi16 screw m16x1 5 banjo

Hydraulic ring connector M16x1.5 with M18 thread with screw M16x1.5 SKRAW-MET CODE: [8365]The connector is perfect for hydraulically powered machines and devices. It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Eye ends also called 'banjo' ends - used to enable connection of the hydraulic system with other elements.

Usually used when there is not much space in the hydraulic system for a knee switch, then a ring end is used, which is tightened with a screw.

___On each precision and quality supported by detailed measurements at the production stage.

The most modern CAD/CAM and ERP/MRP software solutions enabling the production of details for the most demanding applications.

Technical Specification: Total length of the eyelet with thread: 52 mm

Total length of the screw: 40 mm

Eye thread: M18x1.5

Screw thread: M16x1.5

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
