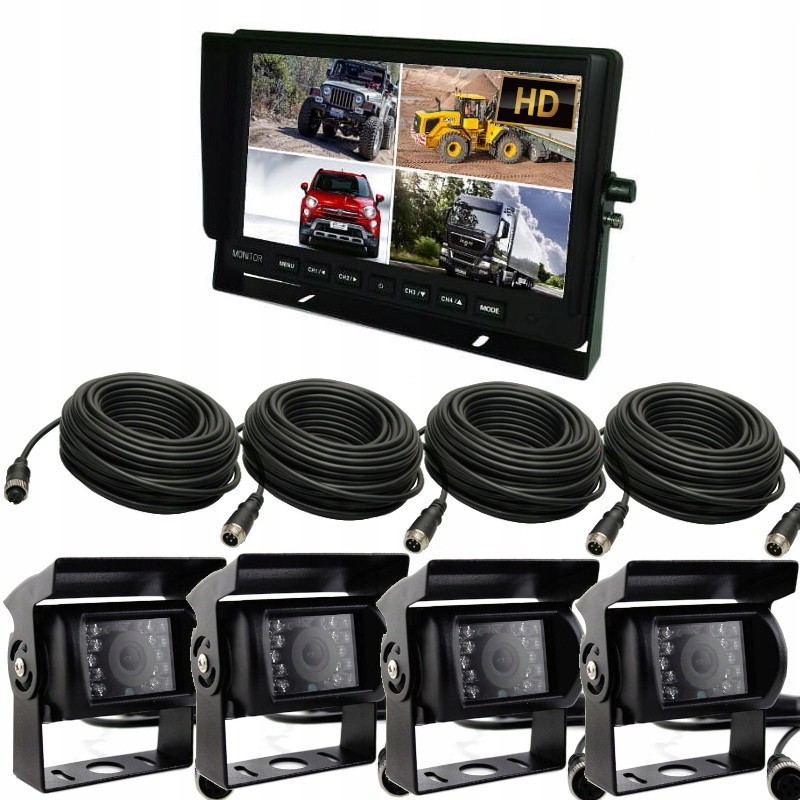

Set of 10 AHD monitor 4 x 720p camera quad cables

Expert PRO AHD set 4 x 720P reversing camera + 2 x 15m + 2 x 10m + 10' QUAD 12V/24V 4-PIN monitor with recording

PROFESSIONAL SET

4 AHD 720P color cameras in a metal housing

AHD QUAD 10' color monitor with DVR (support for up to 4 cameras)

2 x 10 meters of 4-PIN cable

2 x 15 meters of 4-PIN cable

AHD technology

The AHD (Analog High Definition) system is a completely new technology that combines the advantages of analog transmission with IP quality transmission - HD 720p and FullHD 1080p. Image with twice the resolution of standard reversing cameras.

The set is intended for:

agricultural machines, combines, excavators, bulldozers, snow plows, garbage trucks, coaches, buses, trucks and large trucks, campers, ambulances, etc.

UNIVERSAL 12V and 24V POWER SUPPLY

10.1' LCD monitor from the series Heavy Duty characterized by increased resistance to vibrations and shocks, a metal handle ensuring stable installation and a sun visor.

support for 4 cameras in the QUAD system, i.e. with the ability to display all cameras at the same time.

sun visor

support for up to 4 AHD 720P and analog 4PIN cameras

branded IPS HD matrix with high resolution HD 1024 x RGB x 600

auto power-on function

image rotation function

ability to preview a selected camera

ability to preview from 2 cameras at the same time

ability to preview from 3 cameras at the same time

ability to preview from all 4 cameras (in several configurations)

built-in speaker (audio on the first channel)

built-in DVR recorder

functional simple MENU

systems: PAL/NTSC

power consumption <, 9W

auto switch-on function after receiving voltage on the additional cable (excitation system each camera separately)

power supply: DC 12V-24V

dimensions: width 265mm x height 185mm x thickness top 72mm, bottom 35mm

weight: approx. 520 g

color black

AHD 720P reversing camera

(ordinary car cameras only have 420TVL)

18 high-performance IR LEDs enable the camera to be clearly seen even in complete darkness. High image quality, excellent colors and detail reproduction are ensured by a megapixel sensor. The camera's resolution is more than twice that of standard reversing cameras. The camera has a handle that can be adjusted in one plane and an adjustable visor that protects the lens against precipitation and prevents the camera from being blinded by strong sunlight.

Camera technical data:

Resolution: 1280 x 720

Sensitivity: 0lux (IR ON)

IR LED: 18pcs

Night visibility: 10 meters

Viewing angle: 150°

Housing: Aluminum alloy

System: PAL/ NTSC (depending on delivery)

Tightness: IP68

Shock Resistance: 4G

Operating temperature: -20℃ to 70℃

The set includes two 10 and two 15 meter cables (video and power) in the 4-PIN system, ensuring a solid and tight connection of the camera to the monitor. The connectors have metal nuts and an additional rubber seal to prevent moisture from entering the socket.

We also sell other cable lengths.
