    10 pcs : ESD341DPLR - TVS Diodes / ESD Suppressors 0.66-pF +/-3.6-V +/-30-kV ESD protection diode with 5.4-A surge rating in 020
    • 10 pcs : ESD341DPLR - TVS Diodes / ESD Suppressors 0.66-pF +/-3.6-V +/-30-kV ESD protection diode with 5.4-A surge rating in 020

    10 pcs : ESD341DPLR - TVS Diodes / ESD Suppressors 0.66-pF +/-3.6-V +/-30-kV ESD protection diode with 5.4-A surge rating in 020

    10AllpartsUK595ESD341DPLR

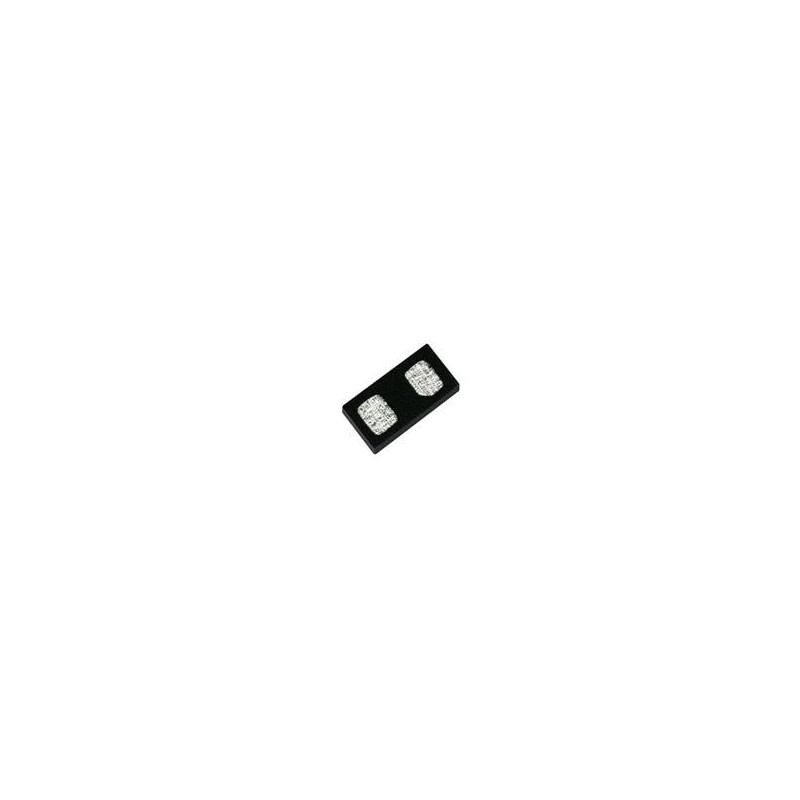

    10 pcs : ESD341DPLR - TVS Diodes / ESD Suppressors 0.66-pF +/-3.6-V +/-30-kV ESD protection diode with 5.4-A surge rating in 0201 package 2-X2SON -40 to 125
    £24.20
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    ESD341 TVS ESD Protection Diode Texas Instruments ESD341 TVS ESD Protection Diode is a TVS ESD protection diode for HDMI 1.4 circuit protection. The ESD341 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.66pF (typical) IO capacitance enabling high-speed interface protection up to 3.4Gbps, including support for protocols such as HDMI 1.4b. The low dynamic resistance and low-clamping voltage ensure system-level protection against transient events.
    Product Details
    TEXAS INSTRUMENTS
    10AllpartsUK595ESD341DPLR
    ESD341DPLR
    10 Items

    Data sheet

    Manufacturer
    TEXAS INSTRUMENTS
    Width
    1.6 mm
    Height
    1.1 mm
    Length
    2.6 mm
    Series
    NZH
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Product Type
    Zener Diodes
    Package/Case
    SOD-123F-2
    Product Category
    Zener Diodes
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Nexperia
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    28 mg
    Part # Aliases
    934064362115
    Pd - Power Dissipation
    500 mW
    Vf - Forward Voltage
    900 mV
    Ir - Reverse Current
    2 uA
