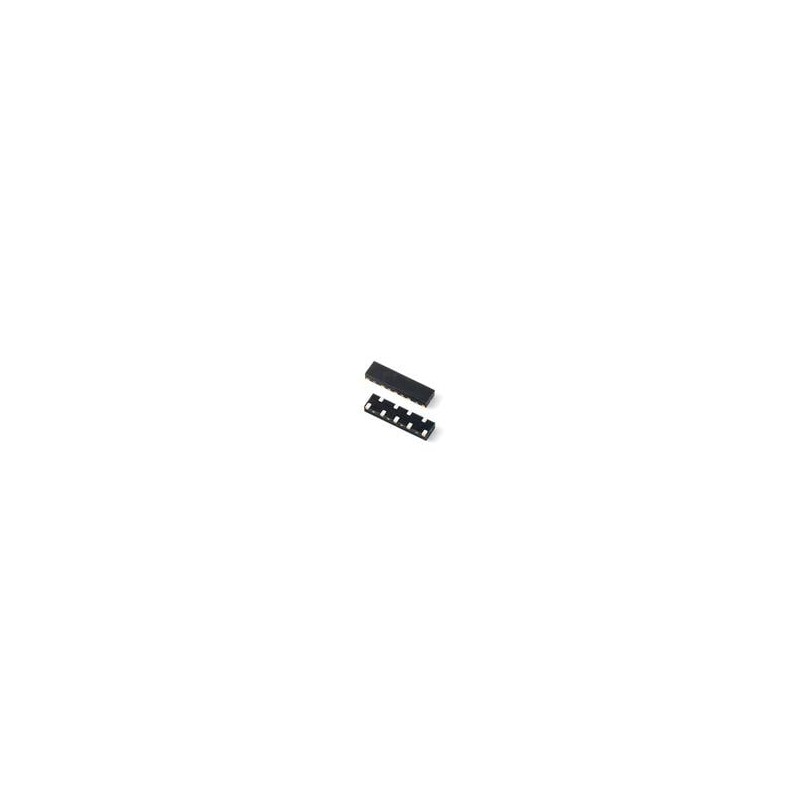

10 pcs : SC7520-08UTG - TVS Diodes / ESD Suppressors 3.3V 6A 12kV DFN3810-9L Diodes Array
    • 10 pcs : SC7520-08UTG - TVS Diodes / ESD Suppressors 3.3V 6A 12kV DFN3810-9L Diodes Array

    10 pcs : SC7520-08UTG - TVS Diodes / ESD Suppressors 3.3V 6A 12kV DFN3810-9L Diodes Array

    10electronicpartsUK576SC752008UTG
    LITTELFUSE
    10 pcs : SC7520-08UTG - TVS Diodes / ESD Suppressors 3.3V 6A 12kV DFN3810-9L Diodes Array
    £32.25
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SC7520/AQ7520 SPA® TVS Diode Arrays Littelfuse SC7520 and AQ7520 (Automotive-Grade) SPA® TVS Diode Arrays include eight-channel ultra-low capacitance and high-level ESD protection diodes to protect high-speed data rates such as USB 3.1, DisplayPort, and e-SATA. A typical capacitance of 0.32pF helps ensure signal integrity. These robust devices can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation and safely dissipate 6A of 8/20μs surge current (IEC 61000-4-5 2nd edition).
    Product Details
    LITTELFUSE
    10electronicpartsUK576SC752008UTG
    SC7520-08UTG
    10 Items

    Data sheet

    Manufacturer
    LITTELFUSE
    Width
    1.35 mm
    Height
    1.1 mm
    Length
    2.2 mm
    Series
    BZX84W
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Product Type
    Zener Diodes
    Package/Case
    SOT-323-3
    Product Category
    Zener Diodes
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Nexperia
    Factory Pack Quantity Factory Pack Quantity
    10000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    6 mg
    Part # Aliases
    934660393135
    Pd - Power Dissipation
    275 mW
    Vf - Forward Voltage
    900 mV
    Ir - Reverse Current
    500 nA
