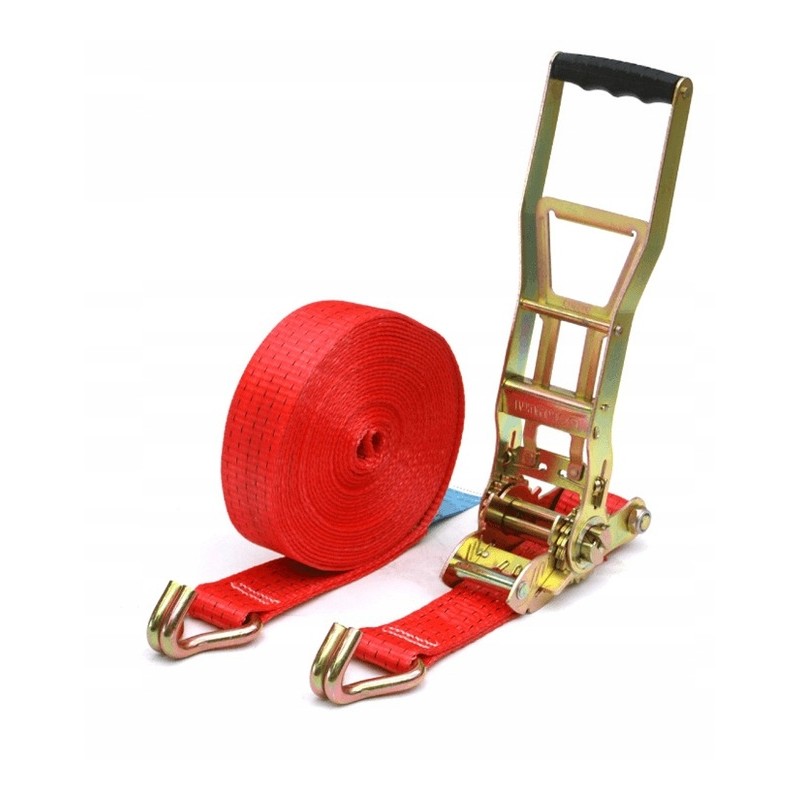

Ergo transport belt 10m 50mm 5t strong texon

ERGO Transport Belt Set with Automatic 10M/50MM/5T - 500 daN 500 daN belts, i.e. ERGO belts differ from a standard belt with a 50 mm tensioner in terms of size and tensioner structure. A longer lever and a stronger tensioner allow the belt to be tightened more strongly than in standard belts with the same force. . The value of 500 daN means that the load will be pressed to the ground with a force of 500 daN, i.e. 500 kg. The value of the STF parameter of standard 50 mm tensioners ranges from 300 to 400 daN (depends on the manufacturer).

Specification: two-piece belt

belt length 10 meters (9.5 m long part + 0.5 m short part with tensioner)

belt width 50 mm

strength: 5000 daN in the belt and 2500 daN in the tension

belt with increased STF up to 500 daN - fastening of heavy pallets.

SHF 50 daN

color: red

Extensibility: 5%

Blue label sewn into all sides, made of flexible and weather-resistant material

A larger, more durable tensioner with a longer lever allows for better belt tension parameters, which means that the load is pressed more strongly to the ground, and thus more effectively immobilizes it.

Such load securing is required mainly for in Western Europe (Germany and Austria).

The belt is recognized throughout Europe and meets the European standard EN12195-2 and has GS and TUV certificates. We also have other types and colors of transport belts
