Oil pressure gauge bracket c 360 3p mf255

Professional oil pressure indicator with bracket for URSUS C-360-3P and MF-255 tractors. SKRAW-MET CODE: [7574] Set made of the highest quality components. Used for constant control of engine oil pressure and as a pressure loss sensor in URSUS C-tractors. 360-3P and MF-255.

Manometer with increased measurement accuracy - perfect for machines. The cable is securely crimped with a professional hose crimper.

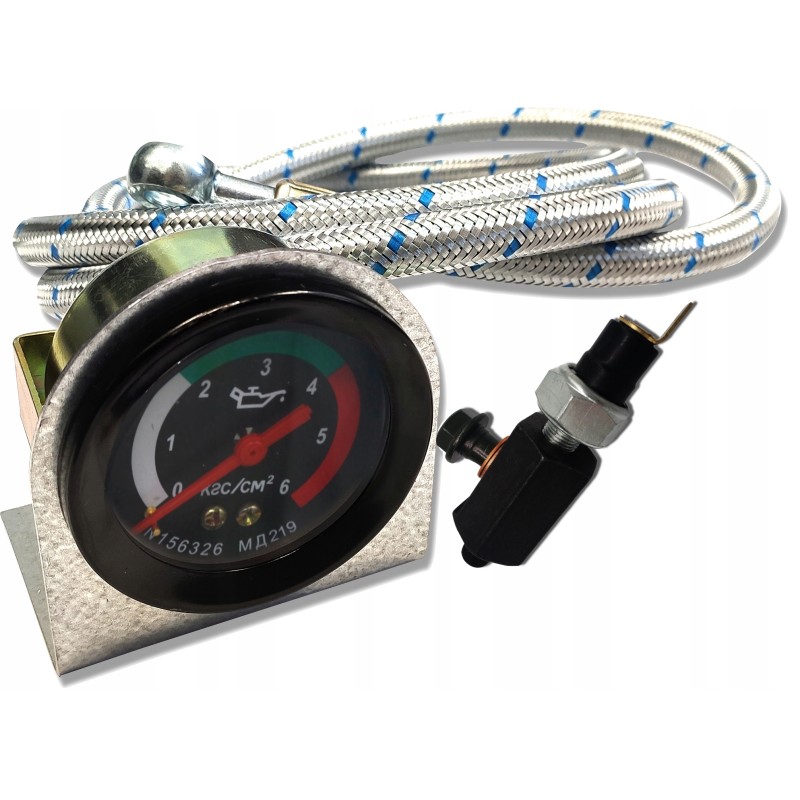

The set includes: MD-219 pressure clock

support

measuring cable with tee

pressure sensor

through screw of the tee

2x copper washer

Thanks to constant control of the oil pressure, they will ensure ensure safe and failure-free operation. Technical specifications: Pressure measurement range: 0 - 6 atmospheres

Clock mounting diameter: 60 mm

Inch thread on the tee: G1/8'

Cable length: 1500 mm

MOUNTING BRACKET SKRAW-MET CODE: [2846 ]It can be used in hydraulic systems - in agriculture, horticulture, forestry and construction.

The bracket is adapted to attach an oil pressure indicator used in URSUS C-330, C-330M, C-335, C-355, C-360 agricultural machines , C-362, C-4011
