Hydrolider B 7-pin trailer socket tester

7-PIN SOCKET TESTER FOR TRAILERS WITH 9V 6F22 BATTERY WARTA Production:

Original product of the Hydrolider brand, symbol: 1.36.28.201.1

Application:

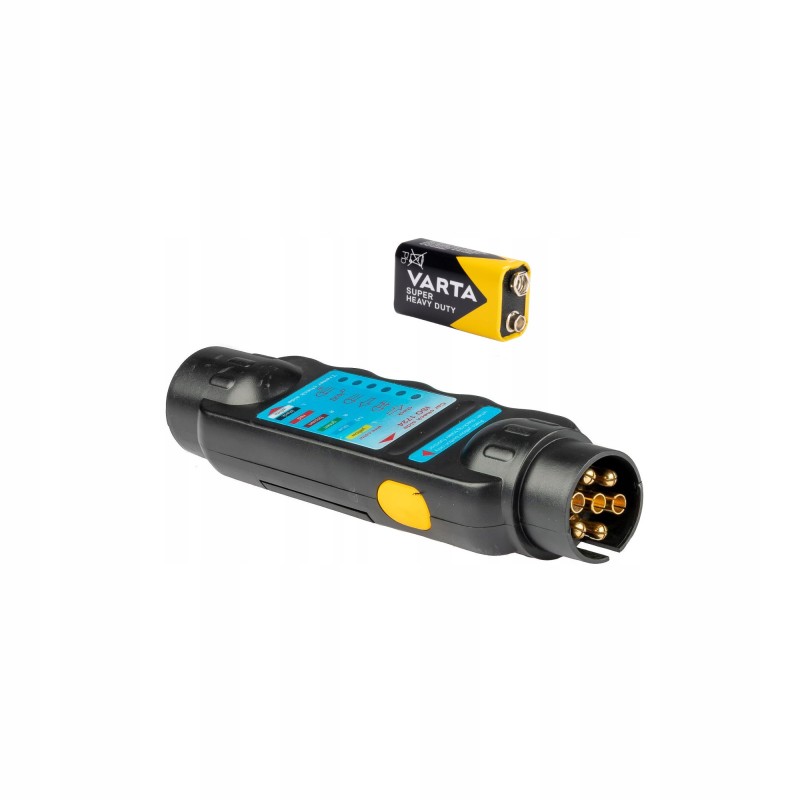

Electronic tester of 7-pin sockets in trailers, agricultural, construction and transport vehicles. The wireless device allows you to easily identify electrical problems and improper functioning of the lighting in the trailer.

To check the proper operation of the harness, remove the plug from the socket and connect the tester to this place.

The correct diagnosis is made by pressing the main button that starts the test. .

If any of the LEDs on the tester panel do not light up, it means that the cable or pin is damaged.

Technical data:

Power supply: WARTA 9V 6F22 battery (included)

Casing: damage-resistant PVC

Dimensions: length 196mm x width 55mm

Number of test diodes: 6

Standard of tested connections: DIN 1724

Reading instructions:

Brake light - red color

Left turn signal - yellow color

Rear fog light or 12V - blue color

Left rear light - black color

Grounding - white

Right turn signal - green

Right rear light - brown
