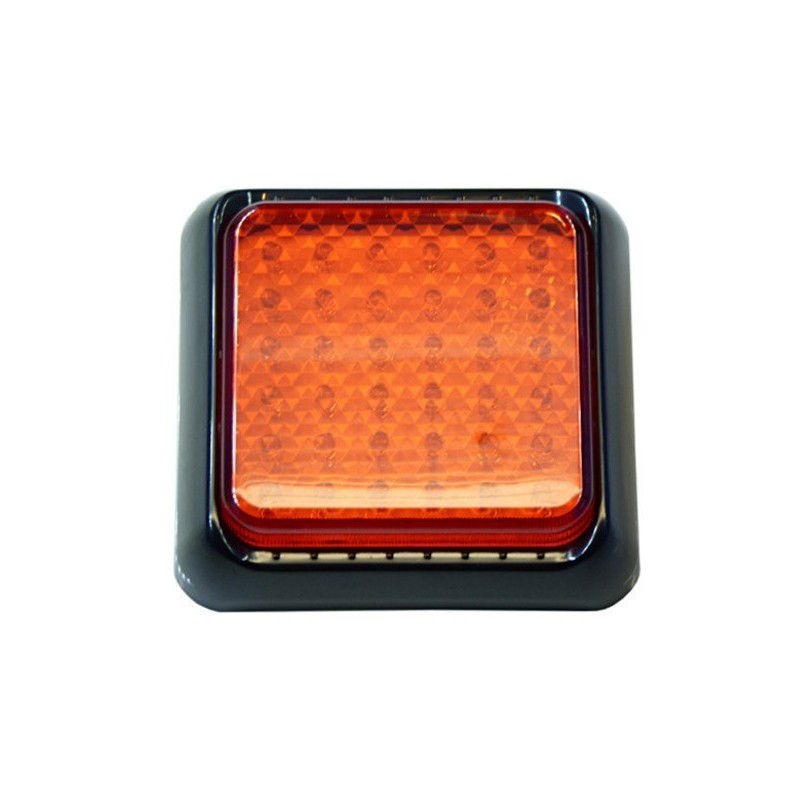

Lamp 36 LED stop fog position 12v 24v rs

Lamp 36 SUPER LED FLUX 12/24 V red Lamp with a built-in voltage stabilizer 12 ~ 28 V.

The lamp is made of high-quality materials, resistant to shocks, overloads, etc. Intensively hermetic.

The red lamp has 3 wires: 1) power cord, 2) wire with stronger light, 3) wire with weaker light. It works on the following principle: stop+position

Lamp PARAMETERS: supply voltage: 12~28 V

current consumption: approx. 230/10 mA

width: approx. 100 mm

total length: approx. 100 mm

height: approx. 28 mm

number of diodes: 36

diode type: super FLUX LED

color: red (such lamps in other colors are available in other auctions)

INSTALLATION METHOD:

the lamp must be removed from the socket. First, screw on the fixture and then press the lamp into it using the latch (mounting screws and nuts are included in the set). The electronics visible in the photo are covered with a thick layer of resin, thanks to which the lamp is intensely hermetic.

example of use:

universal, e.g. warning lamps, signal lamps, in the industrial sector, control lamps, pilot lights, for automatic gates, for industrial machines, advertising lighting, decorative lighting etc.
