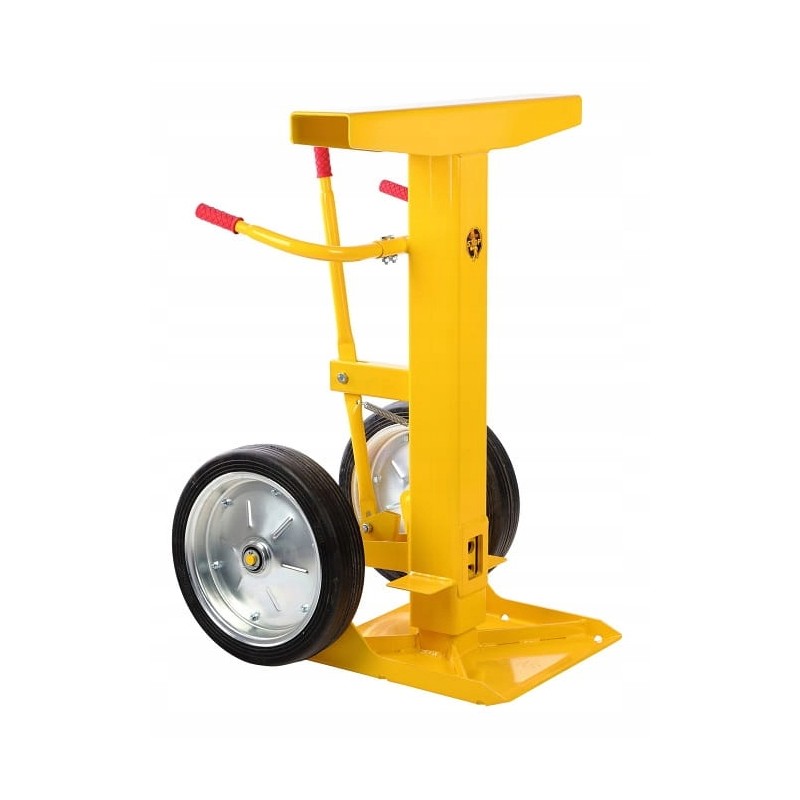

Support for a truck semi-trailer and securing the loading

Support for a TIR semi-trailer, protection during loading Manufacturer: Crash stop

exceptionally massive steel structure with a lagre floor plate (470 x 425 mm)

large crossbar (760 x 120 mm)

adjustable height (1025 - 1344 mm)

self-adjusting gas spring

ergonomically designed handles for ease of use and safe and easy to use

solid rubber wheels (ø 400 mm)

weight: 86 kg

width: 760 mm,

length: 550 mm,

height : 1025 mm,

load capacity: max. 40t

Prevent the trailer from tipping over:

when forklifts load at the front of the trailer, it can become heavy and tilted. This dangerous situation can be prevented by using trailer racks. The trailer stand provides additional security for loading processes, in accordance with the recommendations of the German "Berufsgenossenschaften" in BGI 582 + 603.

The telescopic device can be adjusted in the range from 1025 mm to 1344 mm. The DVS1 is characterized by simple and user-friendly operation.

The product is easy to maintain and care for.

Our instructions comply with the DIN EN 62079 standard and are included with each item and can also be called up digitally as a QR code on the nameplate .

You will find comments and information regarding the use and application of our DVS1.

Example of application:
