WTB hydrolider 7-pin trailer socket tester

7-PIN SOCKET TESTER FOR TRAILERS SET WITH 13/7 and 7/13 ADAPTER SOCKETS and 9V BATTERY Production:

Original product of the Hydrolider brand, symbol: 1.36.28.206.1

Application:

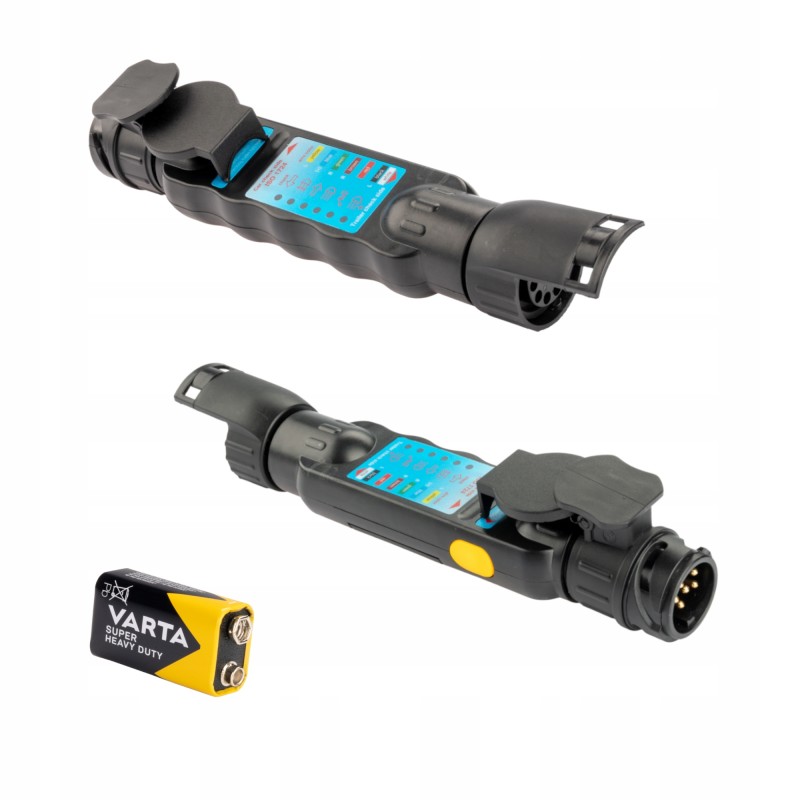

Electronic tester for 7-pin sockets in trailers and agricultural vehicles , construction and transport. The wireless device allows you to easily identify electrical problems and improper functioning of lighting in the trailer.

The set includes 13/7 and 7/13 adapters that allow you to connect the tester to 13-pin plugs and sockets.

To check the proper operation of the harness, remove the plug from the socket and connect the tester to this place.

Correct diagnosis is performed by pressing the main test button.

If any of the LEDs on the tester panel do not light up, it means that the cable or pin is damaged.

Technical data:

Power supply: 9V battery 6F22 WARTA (included)

Housing: damage-resistant PVC

Dimensions: length 196mm x width 55mm

Number of test diodes: 6

Standard of tested connections: DIN 1724

Reading instructions:

Stop light - color red

Left turn signal - yellow

Rear fog light or 12V - blue

Left rear light - black

Ground - white

Right turn signal - green

Right rear light - brown
