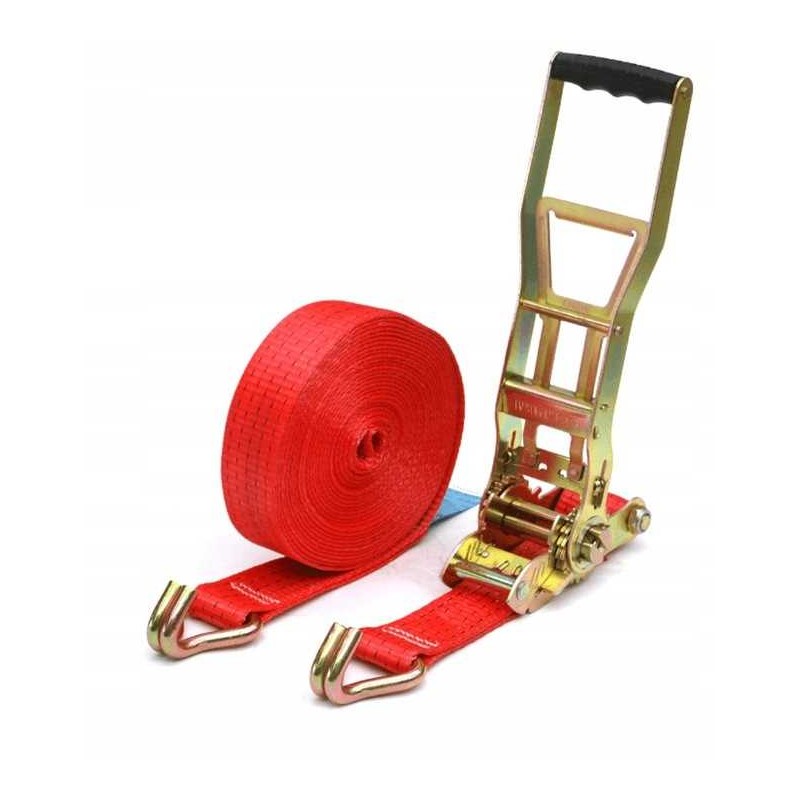

Ergo transport belt set with automatic device 10m 50mm 5t 500dan

ERGO Transport Belt Set with Automatic 10M/50MM/5T - 500daN 500 daN belts, i.e. ERGO belts, differ from the standard belt with a 50mm tensioner in the size and construction of the tensioner.

A longer lever and a stronger tensioner allow the belt to be tightened more tightly than with standard belts using the same force. The value of 500 daN means that the load will be pressed to the ground with a force of 500 daN, i.e. 500 kg. The value of the STF parameter of standard 50 mm tensioners ranges from 300 to 400 daN (depends on the manufacturer).

Specification: two-piece belt

belt length 10 meters (9.5 m long part + 0.5 m short part with tensioner)

belt width 50 mm

strength: 5000 daN in the belt and 2500 daN in the tension

belt with increased STF up to 500 daN - fastening of heavy pallets.

SHF 50 daN

color: red

Extensibility: 5%

Blue label sewn into all sides, made of flexible and weather-resistant material

Larger, more durable tensioner With a longer lever, it allows for better belt tension parameters, which means pressing the load more strongly to the ground, and thus immobilizing it more effectively.

Such load securing is required mainly in Western Europe (Germany and Austria). The belt, recognized throughout Europe, meets the European standard EN12195-2 and has GS and TUV certificates.
