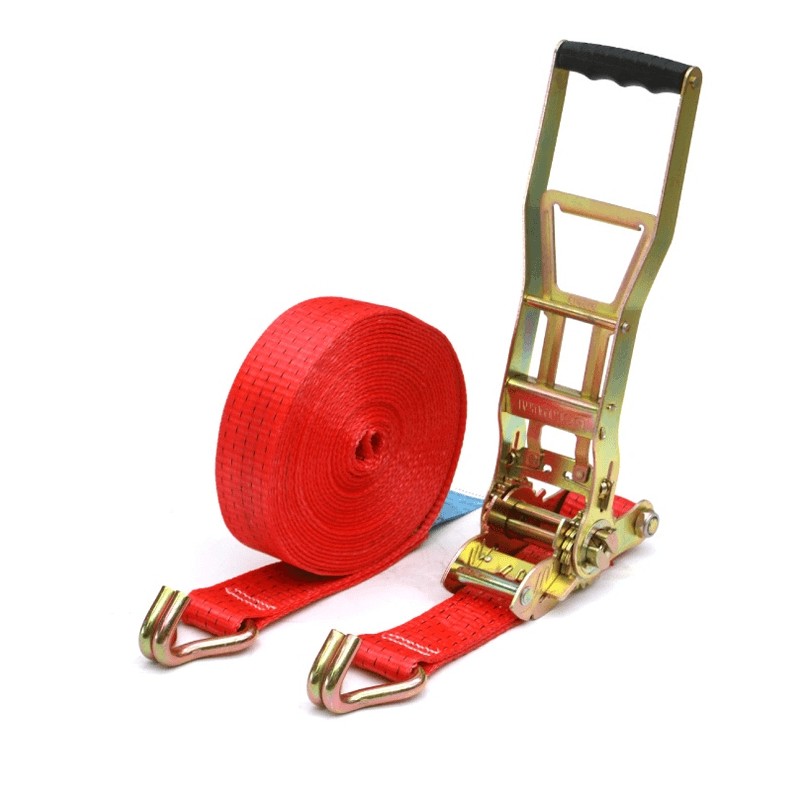

Ergo fastening strap 8m 50mm 5t texon

ERGO Transport Belt Set with Automatic 8M/50MM/5T - 500 daN 500 daN belts, i.e. ERGO belts. They differ in size and construction of the tensioner from a standard belt with a 50 mm tensioner. A longer lever and a stronger tensioner allow the belt to be tightened more strongly than in standard belts using the same force. . The value of 500 daN means that the load will be pressed to the ground with a force of 500 daN, i.e. 500 kg. The STF parameter value of standard 50 mm tensioners ranges from 300 to 400 daN (depends on the manufacturer).

Specification: two-part belt

belt length 8 meters (7.5 m long part + 0.5 m short part with tensioner)

belt width 50 mm

strength: 5000 daN in the belt and 2500 daN in the tension

belt with increased STF up to 500 daN - fastening of heavy pallets.

SHF 50 daN

color: red

Extensibility: 5%

Sewn-in blue tag on all sides, made of flexible and weather-resistant material

A larger, more durable tensioner with a longer lever allows for better strap tension parameters, which means the load is pressed more strongly to the ground, and thus more effectively immobilizes it.

This type of load securing is required mainly in Western Europe (Germany and Austria).

The belt recognized throughout Europe meets the European standard EN12195-2 and has GS and TUV certificates.

We also have other types and colors of transport belts
