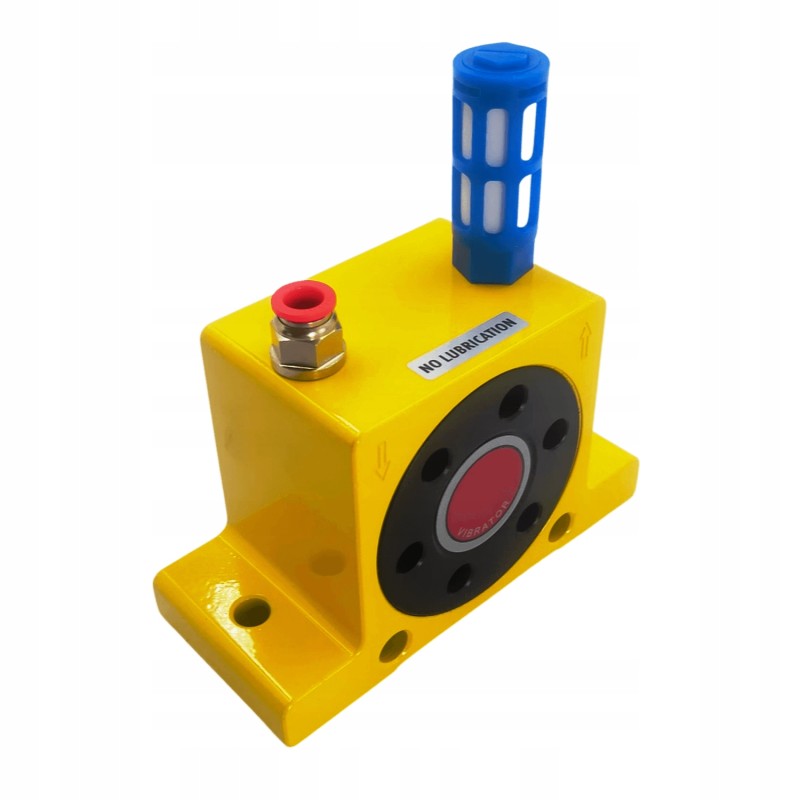

Pneumatic turbine vibrator model GT48

Pneumatic turbine vibrator - model GT48 The GT48 pneumatic vibrator is a turbine vibrator with an aluminum body.

The principle of operation of the vibrator: the GT type vibrator is a turbine vibrator. Inside there is an aluminum turbine with lead balancing weights. A bladed turbine produces vibrations by the centrifugal force of positive and negative unbalanced moments in the rotor at high frequencies and small amplitudes. The rotor is supported by two greased, matched sealed bearings.

Operating environment: the device can operate in any position. Installation is provided by four holes - two horizontal and two vertical. The device does not require maintenance. The housing is made of aluminum alloy, so it does not corrode.

Technical dataBody material - aluminum

Rotating vibrations

2 sets of mounting holes

Frequency and force regulated by air pressure

Air pressure from 2 to 6 bar

Suitable for temperatures up to 150°C

Noise level 60 - 70 dBA with silencer installed

Force 4950N to 10600N

Pneumatic vibrators are most often used in machines and devices used on various types of production and technological lines. Their main task is to generate vibrations that drive vibrating machines (e.g. vibrating feeders and dispensers). Vibrators are also very often used to remove loose materials and dust accumulating on the walls of pipelines and tanks. Thanks to the use of pneumatic vibrators, bulk material installations are not exposed to accumulation and retention of the transported products. Pneumatic vibrators are also used to support the transport and movement of parts as well as to support the emptying of tanks and pipelines.

Examples of applications of pneumatic vibrators: vibrating tables,

belt and pipe conveyors,

feed silos,

emptying tanks,

screening,

vibrating tables,

preventing material from sticking to the surface of pipes and pours,

compacting or loosening bulk materials.

The set includes a pneumatic connector and an air silencer.
