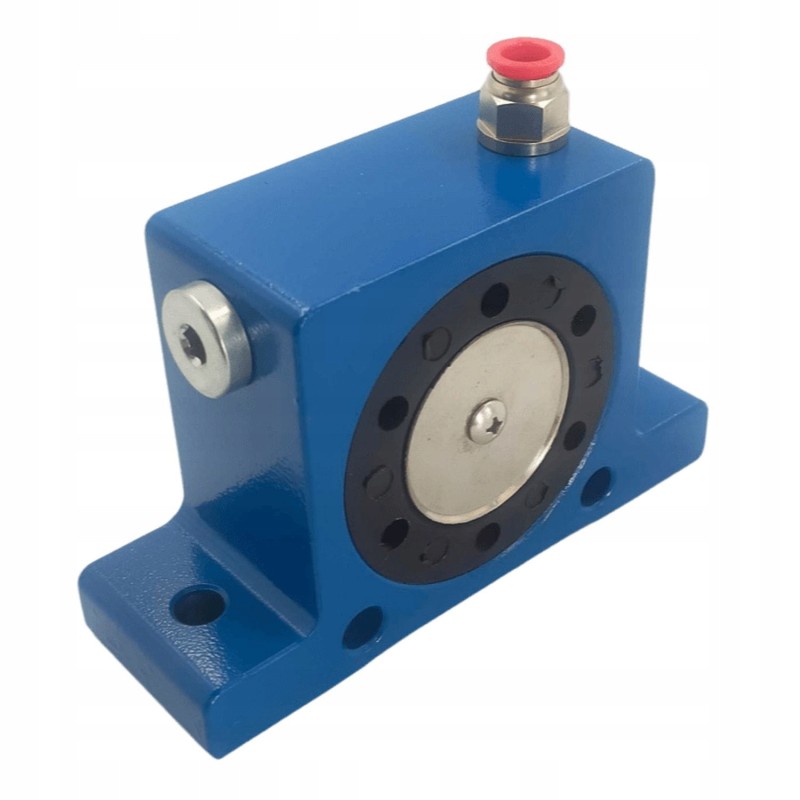

Pneumatic roller vibrator model r120

Pneumatic roller vibrator - model R120 for semi-trailers, dump trucks. The R120 pneumatic vibrator is a roller vibrator with an aluminum body. This vibrator model is most often used in semi-trailers. It helps the lowered material to slide down and prevents it from blocking.

Vibrator working principle: R type vibrator is a roller vibrator. The roller inside moves along the raceways under the influence of compressed air, causing high centrifugal forces and large-amplitude vibrations.

Working environment: the device can work in any position. Installation is provided by four holes - two horizontal and two vertical. The device does not require maintenance. The housing is made of aluminum alloy, so it does not corrode.

Technical data Body material - aluminum

Rotating vibrations

2 sets of mounting holes

Frequency and force regulated by air pressure

Air pressure from 2 to 6 bar

Suitable for temperatures up to 150°C

Force 8100N to 12510N

Pneumatic vibrators are most often used in machines and devices used on various types of production and technological lines. Their main task is to generate vibrations that drive vibrating machines (e.g. vibrating feeders and dispensers). Vibrators are also very often used to remove loose materials and dust accumulating on the walls of pipelines and tanks. Thanks to the use of pneumatic vibrators, bulk material installations are not exposed to accumulation and retention of the transported products. Pneumatic vibrators are also used to support the transport and movement of parts as well as to support the emptying of tanks and pipelines.

Examples of applications of pneumatic vibrators: vibrating tables,

belt and pipe conveyors,

feed silos,

emptying tanks,

screening,

vibrating tables,

preventing material from sticking to the surface of pipes, pours,

compaction or loosening bulk materials.

The set includes a pneumatic connector.

Brand: Other

Automat-on

Manufacturer's catalog number: AUT000054

Condition: New

Product weight with unit packaging: 4.5

EAN (GTIN): 5905359880547
