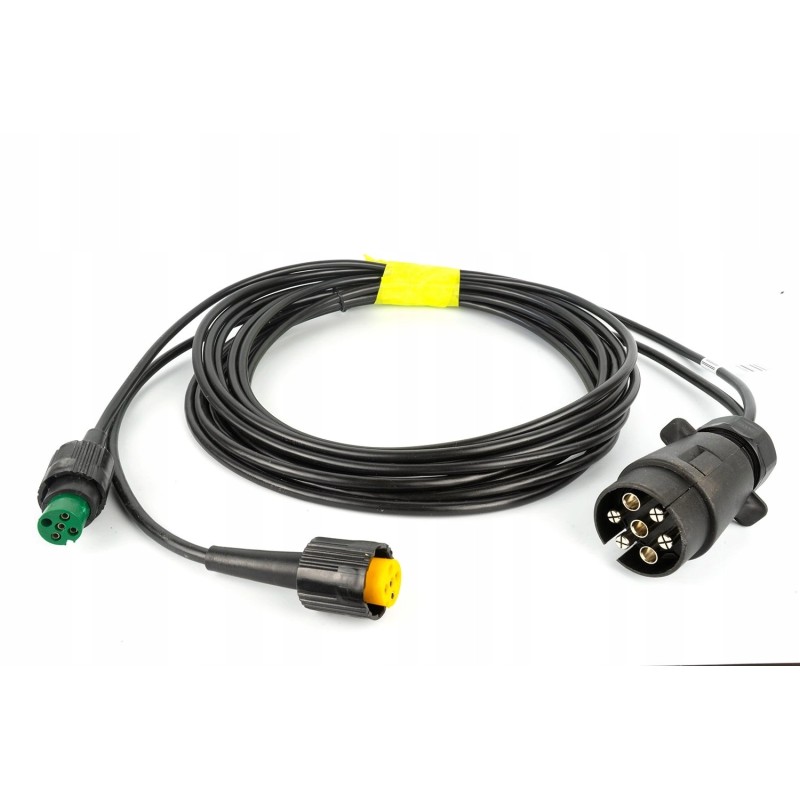

Cable harness 7pin 4m, 7pin bayonet 5pin plug

7-pin cable, 4 m - 7-PIN bayonet 5-PIN plug Mantes Original brand product: Mantes 7-pin cable, 4 m long with a 7-pin plug and 5-pin bayonet connectors, manufactured by the renowned Polish company Mantes. The cable allows you to connect trailer lighting.

Main cable length [mm]: 4000

Plug: 7 PIN

Bayonet/connector: 5 PIN

Output for marker lamps: no

Main cable cross-section [mm]: 0.5

Voltage [V]: 12

Fits trailers with a length [m]: 2-2.5

Catalog number: 40M7PINB5

Manufacturer: Mantes

EAN: yes

Translations: por, eng, nor, swe, slo, lit, est , lav, rus, bul, slv, gre

Code: 40M7PINB5

7 pin cable 7 pin cable manufactured by the Polish company Mantes.

A professional kit that will allow you to install the electrical system in your car trailer. Alternatively, it will replace an old cable that is rotten or has a fault.

The cable is 4 meters long and is suitable for trailers with a GVM up to 750 kg.

The installation has 2 Bayonet 5 - PIN connectors enabling the lighting to be connected to the trailer.

Additionally, the set includes a 7-PIN plug made of good quality plastic, resistant to various types of damage and cracks.

The electrical installation of a car trailer is not approved because it is not required by law. The trailer must be approved and the electrical installation is its element.

Installation of the installation is quick and simple. Any layman can handle it. No special tools of any kind are required.

The set consists of all the necessary elements for installing the electrical harness in the trailer 1x 7-PIN plug cable, 4 m long

1x 7-PIN Plug

2x 5-PIN bayonet connector for rear lamps

What do the individual colors in the 7 PIN plug mean?

Left turn signal - Color: yellow

Fog Light - Color: blue

Ground for turn signal, fog, parking, braking, reversing and test circuits - Color: white

Right turn signal - Color: green

Right position - Color: brown

Braking - Color: red

Left position + license plate - Color: black
