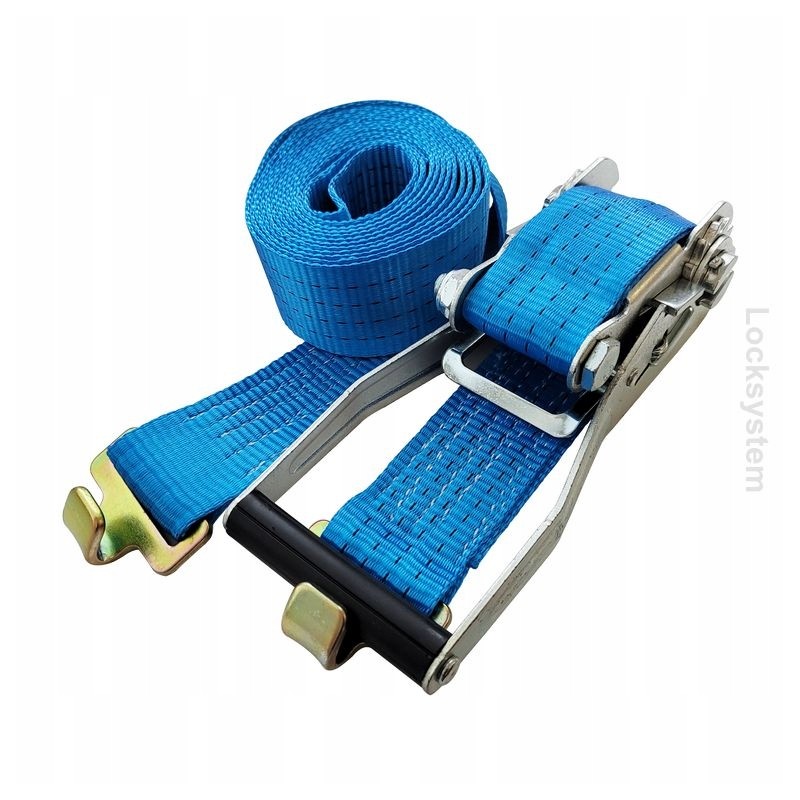

1t 4m belt for a narrow load securing strip

complete transport belt for securing and securing the load, finished with certified hooks for the strip. 4m / 50mm / STF 400 daN

Designed for steel strips with catalog numbers: 1805, 1806.

Produced in accordance with the EN 12195-2 standard applicable throughout Europe.

One set includes:

tape with a hook for the strip (long part)

tensioner with tape and hook for the strip (short part)

Technical parameters: Tensioner

Strap width: 50 mm

LC = 1000 daN

SHF = 50 daN

STF = 400 daN

Material - PES

Length L1 - 0.5 m (strap length at the tensioner)

Hook: 1827 for the strip

Blue color

Transport belt

Strap width: 50 mm

LC = 1000 daN

SHF = 50 daN

STF = 400 daN

Material - PES

Belt length L2 - 3.5 m

Hook: 1827 for the strip

Blue color

Belt elongation >.7%

EN-12195-2 standard valid throughout Europe. It establishes safety requirements for transport belts. A label with this standard gives us a guarantee of quality and safety. The value of 50 daN means that we can apply a force of 50 daN (50 kg) to the lever.

LC fastening capacity, i.e. permissible load - this is the highest force for which the belt can be used in a straight system (in straight tension, i.e. in a straight line). The standard value is 2500daN. When securing the load using the lashing method, the lashing capacity is doubled.

SHF nominal manual force – the maximum force that can be used to tension the manual tensioner. This is the force with which we can act on the lever. Greater force may deform the tensioner. The standard value of this parameter is 50 daN. The value of 50 daN means that we can act on the lever with a force of 50 daN (50 kg).

STF nominal tension force - the force with which the load will be pressed to the ground. Pressing it to the ground increases friction and better secures the load.

Material: PES - polyester PA - polyamidPP - polypropylene
