Power electronics control panel for the cbe pc210 camper

Campervan Power Electronics Control Panel CBE PC210 Electronics Control Kit for your Campervan, Campervan and Caravan The CBE PC210 Kit is a universal 12V installation kit built around the PC210 Digital Control Panel and contains all the main components required to get the electrical system in your campervan and camper up and running.

The microprocessor-controlled PC210 control panel provides a range of functions for controlling and monitoring the electrical system and features capacitive touch switches and a 2.9-inch color LCD display.

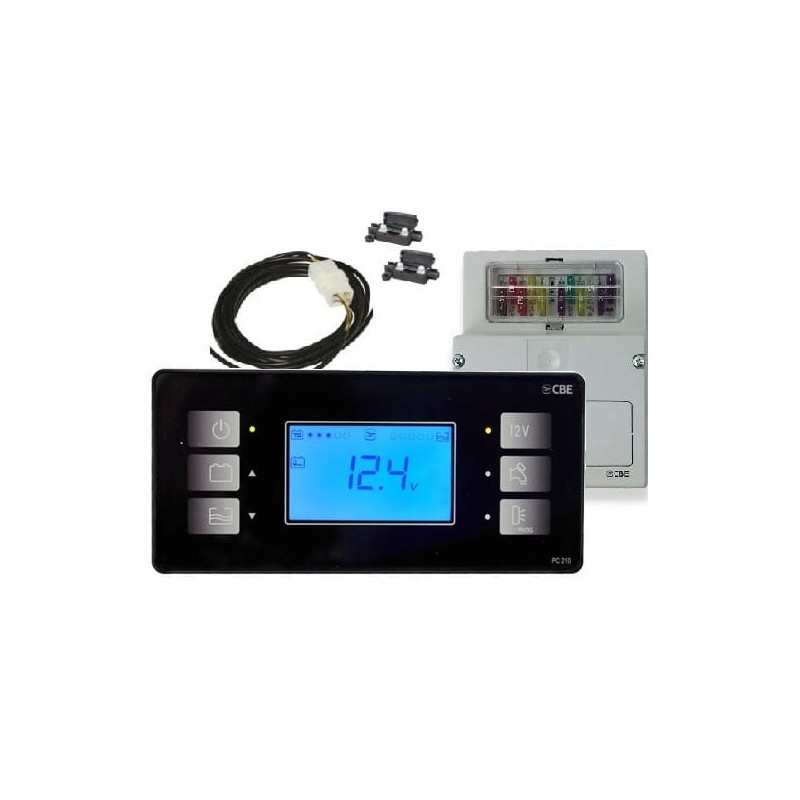

CBE PC210 kit includes the following items:

PC210 digital control panel with 2.9' color LCD display

Distribution box with fuses DS300 12V

A pair of screw probes for detecting the level in a sewage tank

Water probe cable set

Cable set for control panel

Set of cables for internal and external temperature sensor

Fuse socket 50A

Wire harnesses, connector blocks and terminals

System functions:

Voltmeter for checking the condition of the starter and recreation battery

Internal and external temperature display

Digital clock

240V power indication

Water level indicator in the clean water tank

Sewage tank filling indicator

Clean water tank probe calibration

Audible clean water tank filling indicator

Split charging indicator

Starter battery excessive discharge alarm

Recreational battery over-discharge alarm

240 V mains power indicator

Awning lighting switched on

Control panel dimensions 170 x 80 mm Due to the different heights of clean water tanks, the water probe is not included. We offer 220mm, 300mm and 400mm. We also offer the opportunity to purchase compatible CBE 16A CB516-3

chargers

Technical specifications:

PC210 control panel with digital display:

Rated voltage: 12V DC

Panel color: black

Screen specifications: 2.9-inch blue backlit LCD display Dimensions: 170 (W) x 80 (H) mm Type of mounting: built-in to the panel

DS300 fuse switchboard:

Rated voltage: 12V DC

Number of fuse locations: 11

Fuse values: 3 - 30 A (depending on the circuit)

Battery low voltage cut-off: 10V DC

Battery reconnection voltage (after disconnection): 12 V DC

Bypass trickle charging of the starter battery current: max. 2A

Split charging relay rating: 70 A

Battery and ground pin size: M6

Total dimensions: 140 (W) x 180 (H) x 85 (D) mm

Mounting type: Surface mounting (mounting feet included)

Brand: CBE Made in Italy

Producer: CBE
