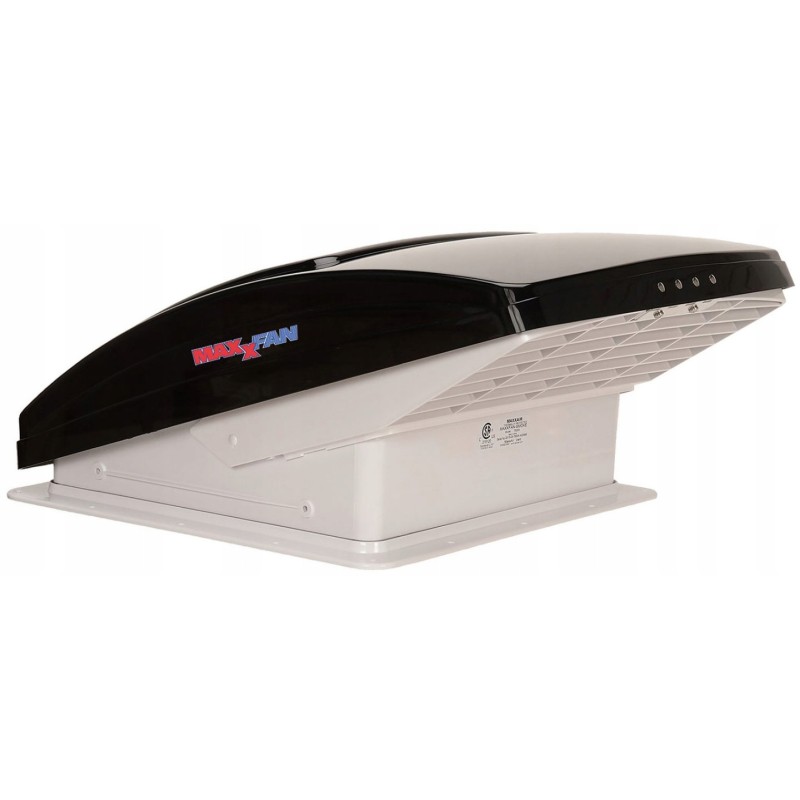

Maxxfan deluxe smoke roof window 40x40cm

ROOF WINDOW WITH MAXXFAN FAN 40 x 40 cmThe complete Maxxfan Deluxe ventilation system guarantees fresh air in the vehicle and prevents stuffiness and unpleasant odors. The powerful fan has 10 speed levels. The cover is resistant to rain and UV radiation. The fan operates with the cover closed, ensuring good air circulation. MaxxFan Deluxe has a built-in thermostat that maintains the required temperature. The rotating fan is integrated with the roof window and can be freely adjusted using the remote control.

PRODUCT DESCRIPTION:

Model: MaxxFan Deluxe Smoke

Roof window with fan and rain cover

Opening dimensions: 400 x 400 mm

External dimensions (length . x width x height): 585 x 417 x 127 mm

Voltage: 12 V

The fan has 10 blades

Durable ball bearing

Built-in thermostat

Shock and UV resistant

Internal control keyboard

Remote control included

Weight: 6 kg

Color: black

CHARACTERISTIC FEATURES:

10-speed fan, can blow fresh air in and out Automatic speed regulation controlled by a built-in thermostat maintains the required temperature

Built-in rain cover provides full protection when the fan is on or off

The device can be operated using the supplied remote control or manually using the internal control keyboard

Easily removable inner mosquito net

Easy to clean, quiet and efficient

Dimensions:

Roof cutout: 40cm x 40cm to 42cm x 42cm

Hood size: 42cm x 59cm

For roof thicknesses from 2.5cm to 9.0cm.

External dimensions of the cover frame inside: 46 cm x 46 cm

Installation height of the outer cover when closed: 12.7 cm.

Installation height of the outer cover when open: 23.7 cm.

Fan diameter: 30 cm.

Product properties:

Approved and without registration, control number E.

Transparent, black-tinted lid glazing

Stepless adjustment at the push of a button.

Operation: remote control or directly on the control panel.

The lid can be opened even without electricity. using a hand knob.

10-step regulation of the fan with ball bearings.

Fan rotation direction switchable using a button (for external ventilation or air extraction).

Adjustable temperature thanks to the built-in electronic thermostat and sensor.

transparent fan fins

Operating voltage 12 V.

Power consumption 02 A to max. 2.3 A.

Weight: 6 kg.

Infrared remote control with wall bracket, mounting screws and two AAA batteries.

Inner frame adjustable to roof thickness.

Metal mosquito net (removable).

Stainless steel mounting screws and cable lugs for electrical connection included.

Can also be opened while driving

Highest quality

Multi-language illustrated assembly instructions

New.
