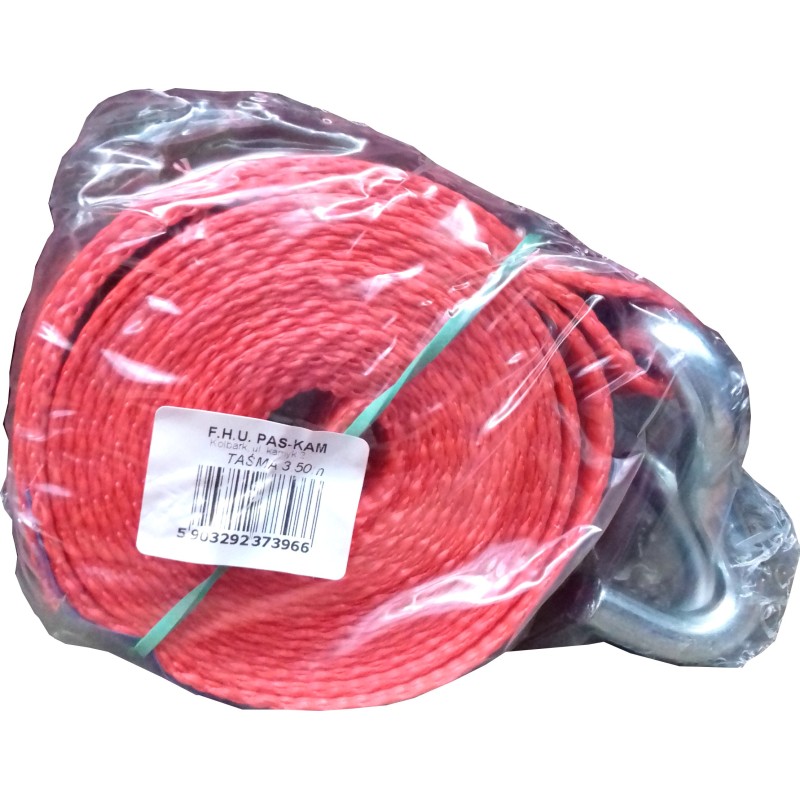

Polish transport belt without tensioner 3 5m 5t 50mm

Durable lashing straps are an important element that allows for effective securing of transported loads. They significantly reduce losses resulting from the movement of transported goods. Fastening with protective plastic corners and rubber or polyester sleeves to protect the load against abrasions is also very important.

At individual auctions, it is possible to select appropriate load securing elements. The proposed protections are perfect for road, inland, sea and air transport. Transport belt - polyester tape with high strength for binding heavy loads. A product of Polish production, high quality, resistant to acids, oils and greases. It can be used in temperature conditions from -40 to 100℃. Two attachment points are needed to secure the load with such a belt. A transport belt with a tensioner is also called a two-piece belt or a set, it consists of a short part - the tensioner and a long part - the belt. This auction is for the belt only - without tensioner.

LC (lashing capacity) - fastening capacity/load - 2000/5000 daN*

This parameter depends on the method of securing the load. However, only one value is given on the label, for straight mounting. 2000 daN means that when fastened in a straight arrangement, the load should not weigh more than 2 tons.

A more frequently used method of securing is by lashing (LC is always twice as large as for fastening in a straight system. Using this belt, you can secure a load with a lashing weighing 5 tons.

SHF (standard hand force): 50 daN*

The force with which you can act on the tensioner arm. 50 daN = 50 kg. This is a standard value. Applying greater force on the tensioner handle may result in its destruction. Therefore, you must not tighten the belt using pipes or extensions that extend the tensioning arm and therefore exert greater force on the mechanism.

STF (standard tension force): 350 daN*

Nominal tension force, i.e. the force with which the load will be pressed to the ground. 350 daN = 350 kg. The standard value of this parameter ranges between 350 and 400 daN.

Tape length - 3.5 m

Width - 50 mm (red tape)

Elongation - <,= 7%

Strength BS (Breaking Strength) - 2000/5000 daN*

Hook: double claw

Blue information tag made of weather-resistant material sewn into the waistband. In addition, the label contains mandatory information such as the manufacturer's name, product code, production date, declaration of compliance with the relevant standard and the information 'Do not hang'. Fasten!'

The offered transport belts are manufactured in accordance with the EU standard EN 12195-2, which guarantees high quality and safety of use. In Poland, this standard is valid under the number PN-EN 12195-2:2003. Conformity is declared on blue tags attached to each belt.

Certificate - CW/21/13

*Compliance with the European standard - EN 12195-2
