Transport belt 5t 10m 50mm hit transport belts

Transport belt 5T 10M 50mm HIT transport belts MIZAR number: 04375

Transport belt 10m 5t 50mm with tensioner, red The Mizar store offers a brand new, high-quality product: Transport belt 10m 5t 50mm with tensioner meeting the European standard N 12195-2 and TÜV NORD certificate. Complete two-piece transport belt with a heavy-duty tensioner.

Transport belt designed to secure various loads during transport.

The belt has all the approvals and certificates allowing the transport of goods throughout the European Union.

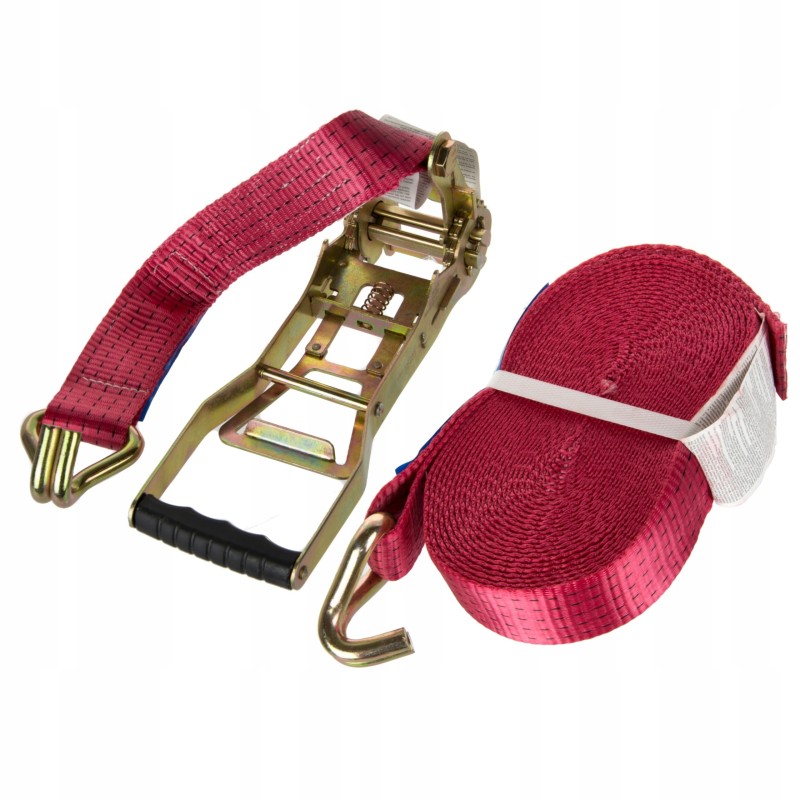

Transport belt 10m 5t 50mm consists of: Tensioner - short part of the belt with a tensioner and a fragment of a belt 0.5m long. Equipped with a high-quality fall system, comfortable handle, durable hook, blue label (production date, strength, manufacturer, etc.)

The strapping part - a 9.5 m long belt made of a durable weave, finished with a durable hook

Transport belt 10m 5t 50mm with tensioner, technical information: - belt and buckle length: belt and buckle length: belt length (9.5 meters) + buckle length (0.5 meters)

- belt strength [in tension]: LC=2500daN

- belt strength [on the belt]: LC=5000daN

- SHF: 50daN

- STF: 400daN

- LC: 2500daN

- elongation: up to 6% at LC

- tape width: 50mm - tape color: red

- weight: 3.00kg

Transport belt 10m 5t 50mm with tensioner, main features: High quality of the belt and low price distinguish the offered belts from the competition. This type of belts are the most frequently used belts in transport in the European Union. This is a sure way to secure your load.

The belt complies with the European standard EN 12195-2 for securing loads.

It is certified by a German testing institution known all over the world: TUV NORD and GS.

Legible tag - according to EU standards, belts without a tag or without visible markings are not suitable for use

Galvanized tensioner, hook and ratchet

Comfortable and ergonomic tension handle Transport belts are not suitable for lifting loads!

What does the EN 12195-2 standard cover? It obliges loaders to secure loads on the vehicle using flexible fastening elements (belts, chains, ropes), mats increasing friction between the load and the surface of the load box, wedges, etc. This is to balance the inertial forces acting on the load during acceleration. , braking, cornering and when overtaking.

The EU standard EN 12195 contains mathematical formulas for selecting the number and capacity of fastening elements used to secure loads on a vehicle based on the maximum accelerations acting on the load while driving.

Transport belts are most often used for: Transporting heavy loads in transport companies Transport of heavy construction equipment.

Private transport

Trailer transport

Operating instructions for the transport belt: 1. Insert the strap into the tensioner slot from below.

2. Manually select the band until it stops.

3. Tension the belt using the tensioner handle, 1.5 turns should be wound on the drum and max. 3 rolls of tape.

4. Close the tensioner

5. To loosen the strap, pull the catch at the top of the tensioner and turn the handle 180 degrees.

MIZAR number: 04375
