Heating air top 2000 stc 2kw webasto unit for a camper

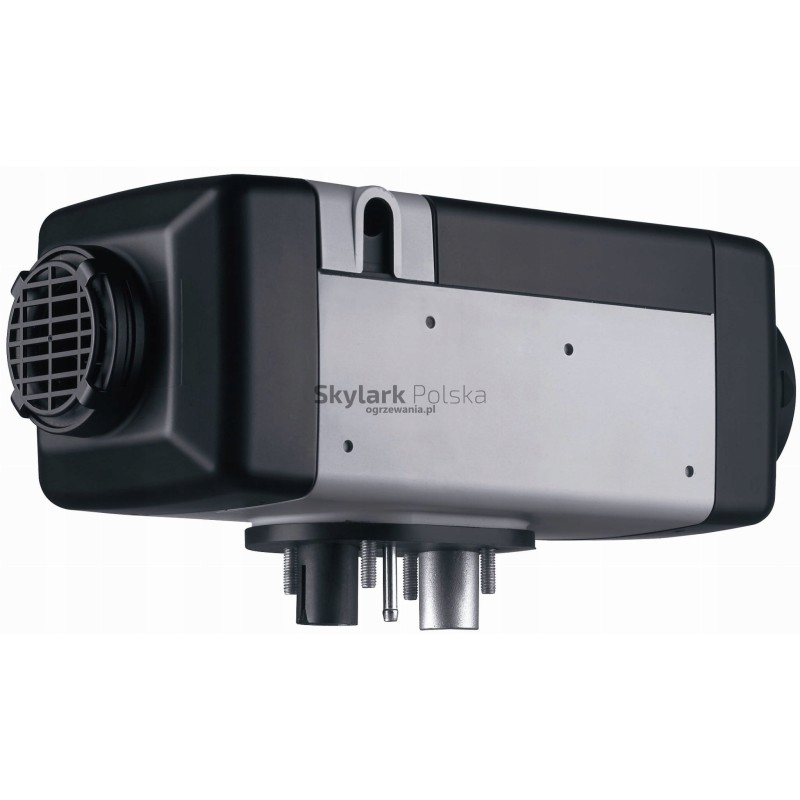

Air Top 2000 STC air heating unit

The Air Top 2000 STC air heating unit is highly appreciated

its versatility and low fuel consumption. Compact

the design allows for quick assembly. The unit can be installed inside or outside the vehicle. The device is fast and quiet heats the air in the interior or cargo area

and keeps the selected temperature constant. Users

they can choose between recirculation mode and fresh mode air.

Ease of servicing and repairing the unit and low consumption fuels make the Air Top 2000 STC economical

in maintenance.

Heating power 2 kW

A solid device with compact dimensions and low

fuel consumption

Fast, even and quiet heating of the interior thanks to

using the DP 42

fuel pump Ease of service and maintenance, possibility of diagnostics

Suitable for use in transport vehicles

hazardous materials (ADR)

Full compatibility of the unit with the W-bus

Unlimited working time with new elements

SmartControl and MultiControl HD

controls Technical data

Air Top 2000 STCdiesel petrol

Approval number ECE R122 (heating) E1 00 0216

Approval number ECE R10 (EMC) E1 04 1085

Heating power, regulation range (kW) 0.9 – 2.0 1.0 – 2.0

Fuel consumption, adjustment range (l/h) 0.12 – 0.24 0.14 – 0.27

Rated voltage (V) 12 24 12

Rated electrical power consumption, adjustment range (W) 14 – 29

Max. air flow at 0.5 mbar (m3/h) 93

Diesel fuels EN 590, PME DIN EN 14214,

Heating oil (EL) DIN 51603-1

Gasoline EN 228, DIN 51626-1

Operating temperature range (°C) –40 to +40

Dimensions length x width x height (mm) 311 x 120 x 121

Weight (kg) 2.6

Mounting kit

Heating unit, DP 42 fuel pump, gasket, grille air intake, documentation

Generator wiring harness, fuel pump wiring harness,

fuel line outside diameter 5, inside diameter 2, length 6000 mm,

flexible stainless steel exhaust pipe I.D. 22 / length

700 mm, flexible PAK

combustion air pipe inside diameter 22 / length 800 mm, fuel extractor, noise silencer suction

Control elements

Potentiometric switch

standard 12/24 V, with function

switching on and backlight, panel

masking Ø 49 mm, depth

assembly including plug: 55 mm

UniControl

12/24 V, panel dimensions 88.6 x 41.6

mm, backlit display,

Possibility of programming up to 3

working periods for a maximum of 7

next days, can be used in ADR vehicles

Control elements

MultiControl HD

12/24 V, panel dimensions (length x width) 68 x 48 mm,

installation depth: 15 mm, quick and

Intuitive operation thanks to a large TFT display and a multi-function button display device status with

multi-colored LED, clear menu control of heating, ventilation and

functions programming the switch-on time, possibility

programming up to 3 work periods per

maximum next 7 days, internal sensor

temperature/interior temperature display on

display, diagnostic connector for

W-bus and Thermo Testu units SmartControl

12/24 V, panel dimensions (length x width) 68 x 48 mm,

installation depth: 15 mm, quick and

Intuitive operation thanks to a large TFT display and a multi-function button display device status with

multi-colored LED, clear menu control of heating and ventilation functions,

internal temperature sensor/temperature display

interior on the display, diagnostic connector

for W-bus and Thermo Test units, indication

ADR on display
