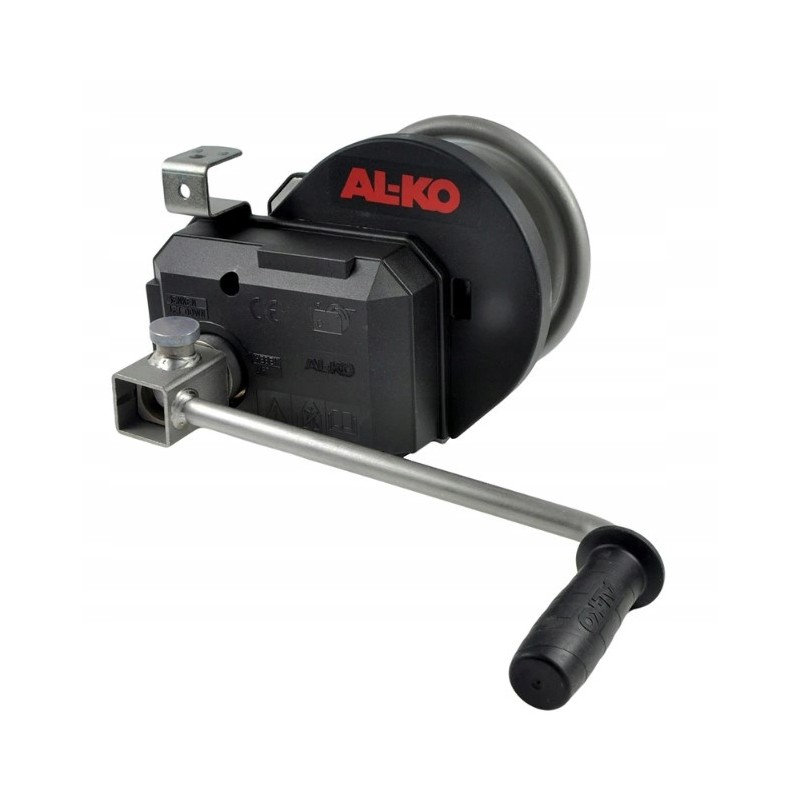

Manual winch winch winch tow truck trailer al ko optima 901a

AL-KO manual winch 900 kg with automatic rope unwinding device

type 1730014

Note: the offer applies to the winch only, without a rope or belt/tape

Type: 901 Plus A

Towed weight: 900 kg

Stroke per crank revolution: 25

Hand strength: 190 N

Reduction ratio: 8.75:1

Drum capacity at the attraction belt: 20 m

Drum capacity with rope Ø 7 mm: 17 m

Vertical load lifting 0% inclination: 330 - 900 kg

Horizontal and diagonal pulling of a non-rolling load (approximate values), friction coefficient approx. 0.5, slope 10% (6°): 550 - 1,500 kg

Horizontal and diagonal pulling of a non-rolling load (approximate values), friction coefficient approx. 0.5, slope 20% (11°): 500 - 1,300 kg

Horizontal and diagonal pulling of a non-rolling load (approximate values), friction coefficient approx. 0.5, slope 30% (17°): 400 - 1,150 kg

Diagonal pulling of a rolling load (approximate values) gradient 10% (6°): 2,100 - 5,800 kg

Diagonal pulling of a rolling load (approximate values) slope 20% 11°): 1,300 - 3,600 kg

Diagonal pulling of a rolling load (approximate values) slope 30% (17°): 1,000 - 2,700 kg

Minimum load: 25 kg

Type of PLUS attractors: automatic, load-bearing pressure brake with return protection

Reduction gear cover

Reinforced drive shaft with an additional bearing sleeve and a wider gear wheel

Wider contact surfaces between the crank and the brake disc to reduce abrasion. The lifting capacity increases to max. 2 times with the rope running horizontally

Operating the Winch Plus:

Raising: turn the crank by hand clockwise.

Holding: release the crank in any position (automatic load brake).

Lowering: turn the crank by hand counterclockwise clock

Automatic rope unwinding:

To unwind the rope (without weight), make two turns of the crank in the counterclockwise direction. Then remove the lock from the crank and remove the crank. Now you can unwind the rope smoothly.

Note: When the winch is under load, the crank must remain on the shaft to prevent the load brake from being released

Characteristics:

AL-KO type 901A manual rope winch with automatic brake for permanent mounting in tow trucks and boat trailers , horizontal pull 1800kg, automatic brake.

Version with quick crank disassembly

vertical pull: 900kg

horizontal pull: 1800kg

brake type: automatic

automatic unwinding: yes

Note the offer applies to the winch only, without the rope and/or belt/webbing

Drum capacity:

rope length: 12.5m

rope diameter: 7mm

AL-KO 900 kg manual winch with automatic rope unwinding Winch prices PLUS: Automatic load-bearing pressure brake with return protection Reduction gear cover Cover of the side opposite the gear Reinforced shaft drive with an additional bearing sleeve and a wider gear wheel]

Wider support planes between the crank and the brake disc to reduce abrasion. The lifting capacity increases to max. 2 times with horizontal rope operation. Operating the Compact and Plus winch. Lifting: Turn the crank clockwise by hand. Holding: Release the crank in any position (automatic load brake).

Lowering: Turn the crank by hand counterclockwise. Automatic rope unwinding To unwind the rope (without weight), make two turns of the crank counterclockwise. Then remove the lock from the crank and remove the crank. Now you can unwind the rope smoothly. Note: When the winch is under load, the crank must remain on the shaft to prevent the load brake from releasing
