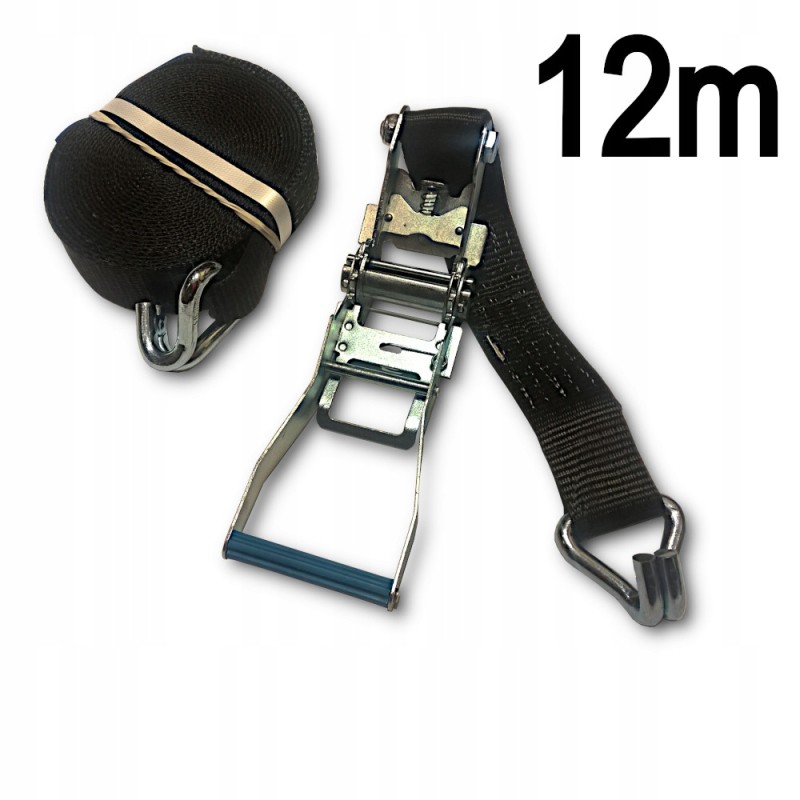

Transport strap, black, 5t 12m 50mm, certified

BLACK fastening belt 5 tons 12 meters - technical dataBreaking Force - BF (Breaking Force) - 5000DaN = 5000 kg

Permissible load - LC - straight system/strap: 2000/4000 daN (2.0/4.0 tons)

Nominal manual force - SHF: 50 daN

Nominal tension force - STF (tensioner): 350 daN (maximum pressure of the load on the ground with a force of 350 kg)

Belt width: 50 mm

Lengths: 12 meters

Possible endings : D1 (double hook)

Material: PES (polyester)

Operating temperatures: -40ºC – 100ºC

Maximum stretch: ≤ 5%

Warranty: 12 months

Compliance: PN-EN 12195-2 standard

Recommended for: securing loads, securing stage facilities

By purchasing a black 5-ton securing transport belt from us, you gain: quick delivery time (also for non-standard orders),

attractive price,

long-life transport belt,

product manufactured in Poland,

transport belt with a tensioner in accordance with the PN-EN 12195-2 standard

black transportation belt with a tensioner - characteristics Two-piece black transportation belt with a tensioner of 5 tons and a belt width of 50 mm is mainly used to secure stage facilities and heavy loads during transport on trucks. It is used wherever transport belts with a belt width of 25 mm and 35 mm are not suitable due to their insufficient strength.

The black transport belt with a tensioner for 5 tons is made of two parts: a short one - which has a tensioner and is finished with a hook. , and long - ending with a hook on one side. To properly immobilize the load, two attachment points are necessary to attach the belt hooks. These may be points with a load-to-ground relationship in the case of simple belt fastening or a ground-to-ground relationship in the case of lashing. After connecting its two parts, it is tensioned using a tensioner.

Ends of the black transport belt. In the standard version, our black transport belt 5 tons 50 mm has a double hook (hook with a double claw). We also mark it as termination D1.

Strength of the black transport belt with a tensioner. The basis for determining the operating parameters of a black transport belt with a tensioner is its rating label. All technical data can be found there. Each transport belt with a 5-ton tensioner should comply with the PN-EN 12195-2 standard and its label should confirm this. The most important technical parameters that should be included on its label are: LC – lashing capacity, i.e. the ability to attach the belt. This is the maximum load on the belt at which it will not be damaged yet. Two values are always given, for securing a straight load and for securing a load by lashing. The transport belt with a 5-ton tensioner has an LC parameter of 2000 / 4000 daN (straight/strapping), i.e. 2 / 4 tons.

SHF – standard hand force, i.e. nominal manual force. This is the maximum tensioning force using the operator's hand at which the tensioner will not be damaged. No extensions, etc. should be used to operate the tensioner lever. The transport belt with a 5-ton tensioner has an SHF parameter of 50 daN.

STF – standard tension force, i.e. the nominal tension force. This is the force with which the load will be pressed to the ground. This value depends on the design of the tensioner. The more solid the structure, the more it can press the load. A 5-ton transport belt with a tensioner has an STF parameter of 300 daN (300 kg).

LGL – this is the actual length of the transport belt along with its elements such as hooks and the tensioner. In the case of two-piece belts, the length of each part of the belt is included on its label, and the total length of the transport belt is the sum of the lengths of both parts and is typically from 2 to 16 meters.

Other additional information may also be included on the label.
