Alphatronics 22 sla 22 dsbw camper TV

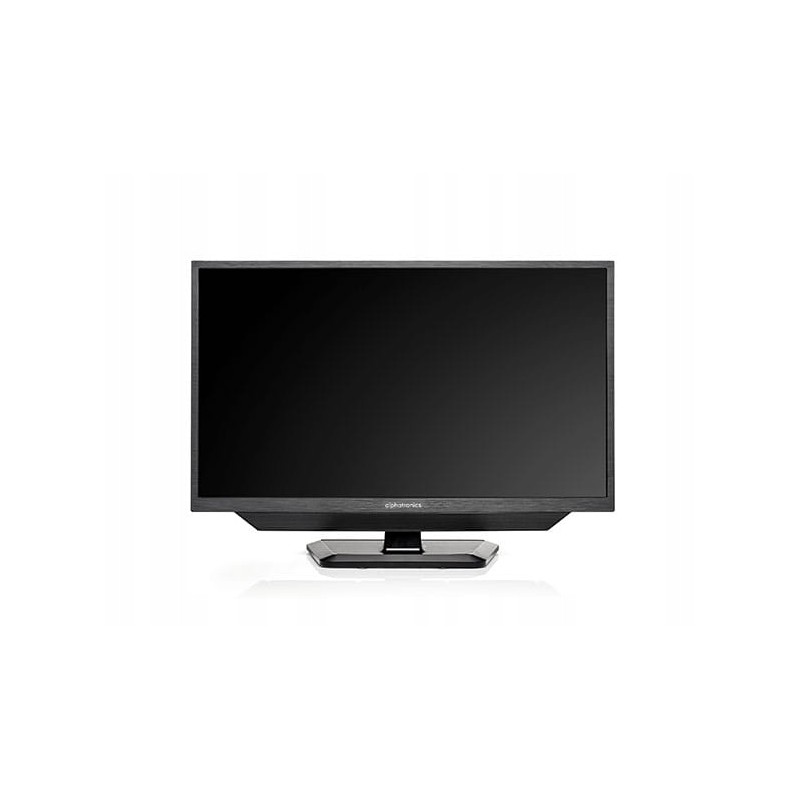

Alphatronics 22' SLA-22 DSBW+ TV

Once again, alphatronics SLA Line+ offers innovation combined with proven quality in the next stage of evolution. The main focus of this generation of models is LG's new WebOS TV operating system. With direct access buttons to streaming providers "Netflix" and "Amazon Prime Video" as well as practical voice control and air mouse functions, operation is simplified and even more intuitive.

The special feature of the SLA line is its exceptional sound quality. The integrated soundbar with front-firing speakers provides an optimal sound image, specially adapted to the conditions in the vehicle.

SLA-Line+ is available with screens with a diagonal of 22', 24' and 27'. It is equipped with a triple tuner (DVB-S/S2, DVB-T/T2, DVB-C), HbbTV, CI+ (new 2.0 standard), DVD player (socket on the right side of the device), 2x USB port, 2x HDMI™ port , Bluetooth® 5.0, as well as a new Light Wave port (SPIDF / Toslink), which allows you to connect digital soundbars or hearing aids.

Product advantages at a glance:

Intuitive operation via webOS Hub

Panel 100% free from pixel errors

Integrated soundbar

Special sound processor

Specially tuned sound profile

Voice assistant

Air mouse function

External Wi-Fi antenna

Integrated DVD player

CI+ 2.0 module

HDMI CEC and ARC

function Bluetooth version 5.0

Developed specifically for recreational vehicles

SLA-Line+ is available in screen sizes of 22', 24' and 27'.

Technical data:

Screen:

Screen size 22' / 55 cm

Viewing angle 178° (H) / 178° (V)

Resolution 1920 x 1080 / Full-HD

Display type Wide LED screen

Widescreen aspect ratio 16:9

Response time <, 5 ms

Picture modes 5

Contrast ratio 1000:1

Brightness 350 cd/m²

Sound

Musical power / watt: 2x5 W

Integrated front speakers

Stereo sound

alphatronicsAUDIO+

5 sound modes

Bluetooth®

Bluetooth® version 5.0

Bluetooth® range 30 m

Playback direction transmitter and receiver

TV tuner

Integrated triple tuner (DVB-S/S2 + DVB-T/T2 + DVB-C)

MPEG-2 / MPEG-4

video encoding HEVC H.264 / H.265

standards PAL, SECAM

TV/video systems Sat tuner

CI+ module slot /Version 2.0

HBTV

Automatic channel scanning

Pre-installed channel list - country dependent

Quick scan

LCN (logical channel numbering)

Electronic Program Guide (EPG)

Signal quality indicator (DVB-S/S2)

Teletext (TOP system)

Program memory

Favorite list •

stations: DVB-T/C 500

stations: DVB-S2400

Playback

Integrated DVD player

Supported DVD size - standard size

DVD formats (CD, DVD, VCD, MP3, DVD-R, DVD-RW, DivX, JPEG)

Integrated media player

Ports

F-connector (SAT)

IEC connector (antenna)

HDMI™ socket 2x

HDMI™: ARC/CEC support

AV IN

Headphone output (3.5 mm)

Toslink / SPDIF (optical)

USB socket (standard 2.0) / Output (mA) 2x / 1 A (max.)

Network

Dual band Wi-Fi - 2.4 GHz / 5 GHz

External Wi-Fi antenna

RJ45 (LAN)

Smart

SMART2 5webOS Hub platform

App Store Content Store

Update

OTA (Over The Air) Update

Power

Input voltage 10.5 - 30 V DC

On/off switch

Energy consumption kWh/1000h 15

Power consumption in standby mode <, 0.5 W

Energy efficiency class E

Features

Graphical OSD menu Polish / multilingual

Sleep timer

Parental control / PIN code

General

Dimensions with base (W x H x D) 502 x 365 x 175 mm

Dimensions without base (W x H x D) 502 x 330 x 50 mm

Weight (with/without base in kg) 3.60 kg / 3.40 kg

Housing color: brushed anthracite VESA standard 100 x 100 mm

Accessories

TV, remote control, DVB-T antenna, 12V car cigarette lighter cable,

Mounting accessories, user manual
