Azo ips 6000 w voltage converter 12 230v gw 3l

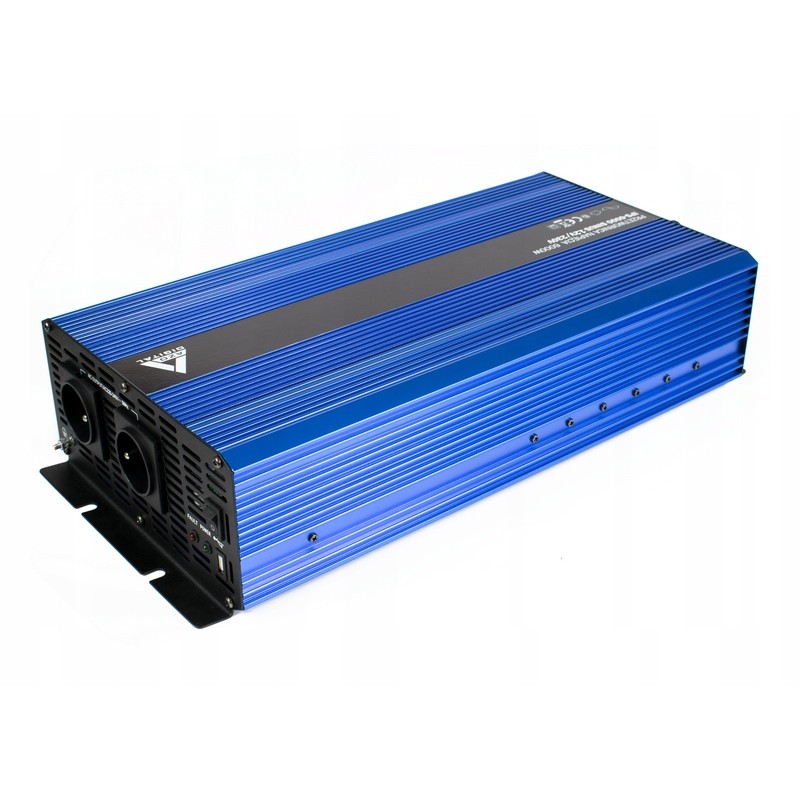

Voltage converter with soft start AZO IPS-6000-S SINUS 12V/230V continuous power 3000VA / instantaneous power 6000VA

AZO IPS-6000-S with soft start function: for powering electrical and electronic devices requiring 230V alternating voltage from batteries and car installations with 12V direct voltage

emergency source of energy for devices requiring continuous power supply, such as furnaces, central heating pumps, maintenance systems

processor control of the shape and output voltage (sinusoidal shape)

advanced algorithm of soft start of induction motors, guaranteeing 100% start of motors with power corresponding to the continuous power of the converter

overload, short-circuit and thermal protection

auto restart with soft start mode, ideal for powering refrigerators and coolers

soft start

signaling against too low and high voltage and deep battery discharge

intelligent smooth control built-in fan

aluminum housing

low battery alarm

high efficiency

guaranteed quality and failure-free

3-year manufacturer's warranty.

IPS 6000 SINUS 12V/230V AZO Digital voltage converter.

AZO IPS-6000 -S is an ideal converter for powering induction motors and other devices that require a 230V sinusoidal voltage supply.

3-year manufacturer's warranty.

AZO IPS-6000-S allows you to connect 230V devices in a 12V installation (e.g. in a passenger car). The converter is useful wherever it is not possible to connect devices to the 230V power grid.

The device has been designed to power electrical and electronic devices requiring 230V alternating voltage from batteries and car installations with 12V direct voltage.

An emergency source of energy for advanced devices requiring continuous power supply. such as furnaces, central heating pumps, maintenance systems.

The converter provides continuous power of 3000VA (maximum 6000VA).

The unit of volt-ampere (VA) means apparent power, which in special cases corresponds to active power expressed in watts (W).

This converter is used when using a converter with a resistive load, e.g. a kettle, soldering iron, lighting, etc.

The converter comes with power cables.

The AZO Digital IPS-6000-S converter has protections:

against power supply polarity reversal

protection against too deep battery discharge

overload protection

output short-circuit protection

thermal protection - protects the converter against overheating.

Examples of devices that can be operated by the AZO IPS-6000-S 12V/230V converter:

central heating furnaces

central heating pumps

incandescent and LED lighting

drills, grinders, lawn mowers, vacuum cleaners, etc.

gates

engines

compressors

solar panels

laptop

portable TV

small household appliances

soldering iron

portable DVD player

game console

camera

chargers for mobile devices

printers and cash registers.

Recommended batteries from our offer:

60Ah

100Ah.

Batteries can be found on our other auctions.

Specification:

Input voltage [ VDC]: 11÷15

Output voltage [VDC]: 230 VAC

Maximum power: 6000 VA

Continuous power: 3000 VA

Output voltage waveform: Sinusoidal

Soft start of induction motors: YES

Overload protection : YES

Short circuit protection: YES

Thermal protection: YES

Power input overvoltage protection: 15 VDC

Battery discharge warning: YES

Operating temperature: 0 ∼ +40º C

Efficiency: >, 92%

Cooling: active

Power connector: M10 screw connector

230V output socket: E (with pin) - 2 pcs.

USB socket: 5V / 500mA 1pcs.

Housing: Aluminum

Protection level: IP21

Weight: 7.7 kg

Dimensions LxBxH: 490 x 230 x 108 mm

Production: China

Catalog card in PDF file:

http://konektor.nazwa.pl/AZO/IPS6000S.pdf

Contents of the shipment from the Konektor store :

AZO Digital IPS-6000-S SINUS voltage converter 12V/230V

wiring

spare fuses

warranty card (3 years warranty)
